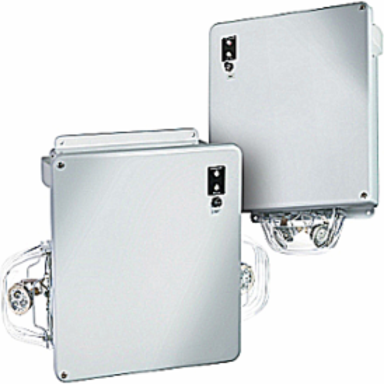

Thomas & Betts 24ESLNX288/2LM Emergency Battery Unit 24V, 288W, 2 MR16 LED Lamps, 30 Min Runtime, NEMA-4X
Thomas & Betts 24ESLNX288/2LM Emergency Battery Unit 24V, 288W, 2 MR16 LED Lamps, 30 Min Runtime, NEMA-4X
- MPN: 24ESLNX288/2LM
- PPN: T-B-24ESLNX288/2LM
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3000.00/ EA
Description
Battery Unit, Voltage DC: 24V, Unit Type: NEMA-4X, Battery Type: lead-calcium, Battery Wattage: 288W, 120/347VAC, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 24V, Lamp Wattage: 6W, Head Style: shielded, Battery Run Time (Minimum): 30 minutes
Features
- Delivers great pathway illumination up to 70 feet, center to center (with M20 WH lamp)
- Solid-state pulse-type charger current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights
- Long-life, maintenance-free sealed lead acid battery
- NEXUS compatible
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Emergi-Lite
- Application
- Industrial
- Wattage
- 288W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 15-1/2 Inches Height x 13-1/2 Inches Width
- Lamp Wattage
- 6W
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 24VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialFiberglass-reinforced polyester
Packaging
- Outer Quantity
- 1
- Weight Uom
- 31 lbs. Each
Outer Dimensions (inches)1x1x1
