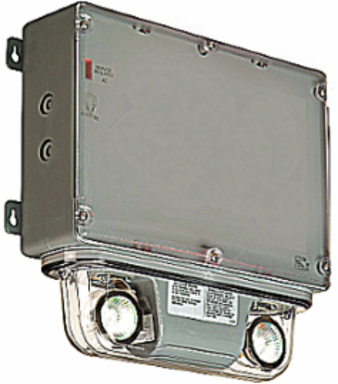

Thomas & Betts 06HZM36UN/2LA Emergency Battery Unit, 12-5/8 Inch x 14-1/2 Inch, 36W, MR16 LED, 30 Min Runtime
Thomas & Betts 06HZM36UN/2LA Emergency Battery Unit, 12-5/8 Inch x 14-1/2 Inch, 36W, MR16 LED, 30 Min Runtime
- MPN: 06HZM36UN/2LA
- PPN: T-B-06HZM36UN/2LA
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2000.00/ EA
Description
Battery Unit, Unit Type: hazardous locations, Battery Type: lead-calcium, Battery Wattage: 36W, 120/347VAC, Voltage DC: 6V, self-powered, Colour: grey, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Head Style: shielded, diagnostics, non-audible, Battery Run Time (Minimum): 30 minutes
Features
- Supplied with Diagnostics as Standard
- Continuously monitors every critical function of the unit
- Water and corrosion resistant cabinet made of fiberglass reinforced polyester and fully gasketed around the cover
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Emergi-Lite
- Application
- Industrial
- Wattage
- 36W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 12-5/8 Inches Height x 14-1/2 Inches Width
- Mounting
- Wall
- Color
- Grey
IGCC3941 Explosion proof emergency and security luminaire
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 6VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialHousing: Cast-aluminum, Frame: Polymeric
Environmental ConditionsMaximum 120ºC [248ºF]
Lamp Wattage4W
Packaging
- Outer Quantity
- 1
- Weight Uom
- 12 lbs. Each
Outer Dimensions (inches)1x1x1
