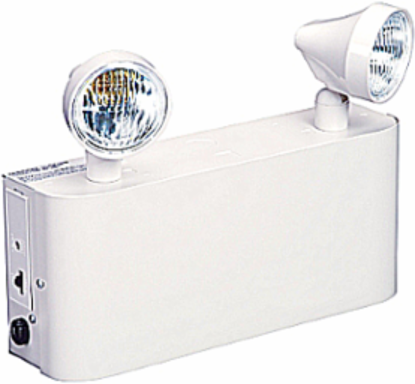

Thomas & Betts 06JMLC27/0 Emergency Battery Unit, 9-1/8 Inch Height x 12-3/4 Inch Width, 27W, Lead-Calcium
- MPN: 06JMLC27/0
- UPC: 078268330450
- PPN: T-B-06JMLC27/0
CAD
$291.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Battery Unit, Battery Type: lead-calcium, Voltage DC: 6V, Battery Wattage: 27W, Colour: factory white, 120VAC, self-powered, no heads, line cord, Battery Run Time (Minimum): 30 minutes
Features
- Quick and easy installation pre-assembled cordset, no batteries or board to remove before installation
- Universal Spider knockout pattern for junction box mounting
- Fully automatic solid-state charger with test switch and AC-on pilot light
- Sealed dust-proof transfer relay circuit and low-voltage disconnect
- Long-life, maintenance-free sealed lead battery
- NEXUS compatible
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39111709 Emergency light unit |
|---|---|
| Brand Name | Emergi-Lite |
| Application | Institutional, Commercial, Hospitality |
| Wattage | 27W |
| Battery | Lead-calcium |
| Size | 9-1/8 Inches Height x 12-3/4 Inches Width |
| Mounting | Wall |
| IGCC | 3940 Emergency light unit |
|---|---|
| Type | Battery Unit |
| Standard | CSA |
| Voltage Rating | 120VAC, 6VDC |
| Battery Runtime | 30 minutes |
| Material | Steel |
| Color | Factory White |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 7 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
