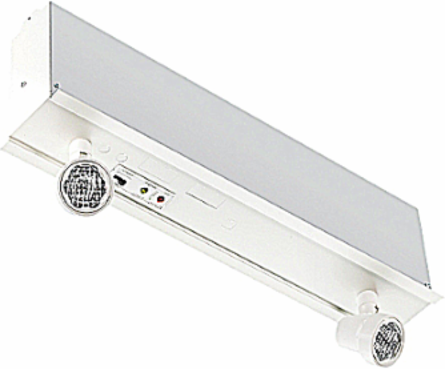

Thomas & Betts 12ESLT72U/2LG Emergency Light Unit with MR16 LED Lamps, 7-1/4 Inch Height x 23-3/4 Inch Width, 72W
Thomas & Betts 12ESLT72U/2LG Emergency Light Unit with MR16 LED Lamps, 7-1/4 Inch Height x 23-3/4 Inch Width, 72W
- MPN: 12ESLT72U/2LG
- PPN: T-B-12ESLT72U/2LG
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$852.38/ EA
Description
Battery Unit, Voltage DC: 12V, T-Bar mount, Battery Type: lead-calcium, Battery Wattage: 72W, Colour: factory white, 120/347VAC, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 4W, diagnostics, audible, Head Style: standard, Battery Run Time (Minimum): 30 minutes
Features
- Removable panel provides easy access to battery and circuitry
- Test switch and LED indicators are mounted on the visible bottom panel
- Solid-state pulse-type charger current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected.
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights
- Long-life, maintenance-free sealed lead acid battery, operates in extreme temperature ranges
- NEXUS compatible
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 15 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Emergi-Lite
- Application
- Institutional, Industrial, Commercial, Hospitality
- Wattage
- 72W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 7-1/4 Inches Height x 23-3/4 Inches Width
- Color
- Factory White
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialSteel
Lamp Wattage4W
