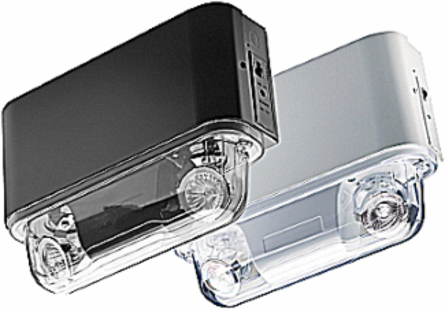

Thomas & Betts 12JMLA72BK/2LG Emergency Battery Unit 9 Inch Height x 12-3/4 Inch Width, 72W, 30 Min Runtime, MR16 LED
Thomas & Betts 12JMLA72BK/2LG Emergency Battery Unit 9 Inch Height x 12-3/4 Inch Width, 72W, 30 Min Runtime, MR16 LED
- MPN: 12JMLA72BK/2LG
- PPN: T-B-12JMLA72BK/2LG
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$766.67/ EA
Description
Battery Unit, Battery Type: lead-calcium, Battery Wattage: 72W, 120/347VAC, Voltage DC: 12V, self-powered, Colour: black, two lamps, Lamp Type: MR16 LED, Lamp Wattage: 4W, Head Style: shielded, Battery Run Time (Minimum): 30 minutes
Features
- Removable front panel on cabinet provides easy access and allows unit to be mounted at ceiling height
- Solid-state pulse-type charger current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator light(s)
- Long-life, maintenance-free lead acid battery
- NEXUS compatible
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Emergi-Lite
- Application
- Institutional, Commercial, Hospitality
- Wattage
- 72W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 9 Inches Height x 12-3/4 Inches Width
- Mounting
- Wall
- Lamp Wattage
- 4W
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialSteel
ColorBlack
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 4
- Weight Uom
- 10 lbs. Each
Inner Dimensions (inches)1x1x.1
Outer Dimensions (inches)1x1x1
