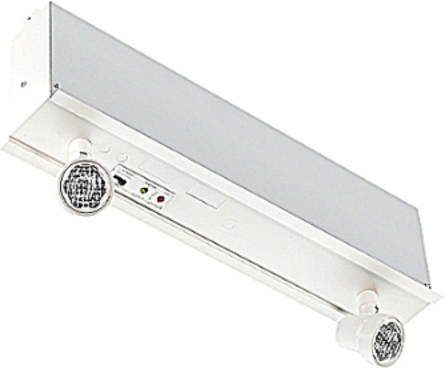

Lumacell RG12S144TB Emergency Light Unit - 12V DC, 144W, 13 Inch Height x 23-3/4 Inch Width, Lead-Calcium Battery
- MPN: RG12S144TB
- UPC: 624616115516
- PPN: T-B-RG12S144TB
CAD
$904.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Battery Unit, Battery Type: lead-calcium, Voltage DC: 12V, Battery Wattage: 144W, T-Bar mount, self-powered, Colour: factory white, 120/347VAC, no lamps, Battery Run Time (Minimum): 30 minutes
Features
- Removable panel provides easy access to battery and circuitry
- Test switch and LED indicators are mounted on the visible bottom panel
- Solid-state pulse-type charger, current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights
- Long-life, maintenance-free lead acid battery
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Colour housing
- White
- Voltage type
- AC/DC
Material housingSteel
Battery qualityLead
Nominal voltage120-347V
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Lumacell
- Application
- Institutional, Industrial, Commercial, Hospitality
- Wattage
- 144W
- Battery
- Lead-calcium
- Size
- 13 Inches Height x 23-3/4 Inches Width
- Mounting
- Ceiling
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
Battery Runtime30 minutes
MaterialCabinet: Steel
ColorFactory white
Packaging
- Outer Quantity
- 1
- Weight Uom
- 19 lbs. Each
Outer Dimensions (inches)1x1x1
