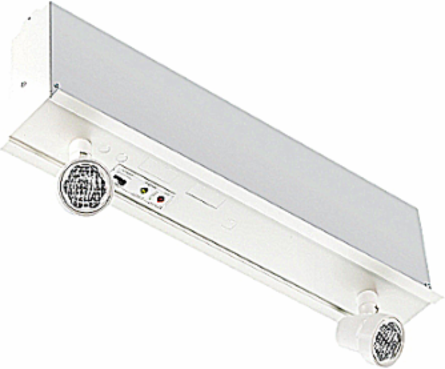

Lumacell RG12S36TB2LD10ATTMBB Battery Unit
Lumacell RG12S36TB2LD10ATTMBB Battery Unit
- MPN: RG12S36TB2LD10ATTMBB
- UPC: 624616334061
- PPN: T-B-RG12S36TB2LD10ATTMBB
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1064.55/ EA
Description
Battery Unit, Battery Type: lead-calcium, Voltage DC: 12V, Battery Wattage: 36W, T-Bar mount, self-powered, Colour: factory white, 120/347VAC, diagnostics, audible, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, AC/DC terminal block, Head Style: standard, Battery Run Time (Minimum): 30 minutes
Features
- Removable panel provides easy access to battery and circuitry
- Test switch and LED indicators are mounted on the visible bottom panel
- Solid-state pulse-type charger, current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights
- Long-life, maintenance-free lead acid battery
Specifications
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Lamp power
- 6W
- Colour housing
- White
- Voltage type
- AC/DC
Lamp typeLED exchangeable
Material housingSteel
Battery qualityLead
Nominal voltage120-347V
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Lumacell
- Application
- Institutional, Industrial, Commercial, Hospitality
- Wattage
- 36W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 13 Inches Height x 23-3/4 Inches Width
- Mounting
- Ceiling
- Lamp Wattage
- 6W
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialCabinet: Steel
ColorFactory white
Packaging
- Outer Quantity
- 1
- Weight Uom
- 13 lbs. Each
Outer Dimensions (inches)1x1x1
