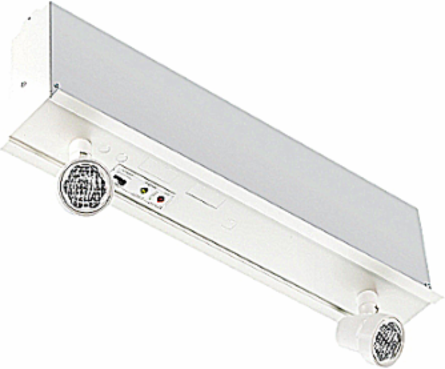

Lumacell RG12S72TB2LD9ATNTMBK Emergency Light Unit, 12V, 72W, 13 Inch x 23-3/4 Inch, 2 MR16 LED Lamps
- MPN: RG12S72TB2LD9ATNTMBK
- UPC: 624616325885
- PPN: T-B-RG12S72TB2LD9ATNTMBK
CAD
$1073.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Battery Unit, Battery Type: lead-calcium, Voltage DC: 12V, Battery Wattage: 72W, T-Bar mount, self-powered, Colour: factory white, 120/347VAC, diagnostics, non-audible, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 5W, AC terminal block, Head Style: standard, Battery Run Time (Minimum): 30 minutes
Features
- Removable panel provides easy access to battery and circuitry
- Test switch and LED indicators are mounted on the visible bottom panel
- Solid-state pulse-type charger, current-limited, temperature-compensated, short-circuit proof and reverse-polarity protected
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights
- Long-life, maintenance-free lead acid battery
Documentation & Downloads
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 15 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Lumacell
- Application
- Institutional, Industrial, Commercial, Hospitality
- Wattage
- 72W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 13 Inches Height x 23-3/4 Inches Width
- Mounting
- Ceiling
- Lamp Wattage
- 5W
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialCabinet: Steel
ColorFactory white
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Lamp power
- 5W
- Colour housing
- White
- Voltage type
- AC/DC
Lamp typeLED exchangeable
Material housingSteel
Battery qualityLead
Nominal voltage120-347V
