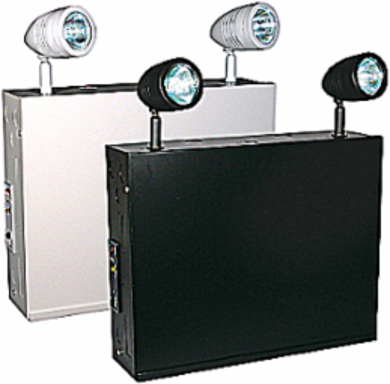

Lumacell RG24S3502DR130LD14AT Emergency Battery Unit 24V DC, 350W, 13-7/8 Inch Height, 2 Lamps
- MPN: RG24S3502DR130LD14AT
- UPC: 624616333217
- PPN: T-B-RG24S3502DR130LD14AT
CAD
$1981.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Battery Unit, Battery Type: lead-calcium, Voltage DC: 24V, Battery Wattage: 350W, Head Style: deco, Colour: polar white, 120/347VAC, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 24V, Lamp Wattage: 6W, diagnostics, audible, Cabinet Size: C, Battery Run Time (Minimum): 30 minutes
Features
- Removable front panel on cabinet provides easy access and allows unit to be mounted at ceiling height
- Solid-state pulse-type charger, current-limited, temperature-compensated
- Unit comes standard with electronic lockout and brownout circuits
- Sealed dust-proof transfer relay, test switch and LED indicator lights continuously monitor unit status
- Long-life, maintenance-free Lead-Acid battery
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 52 lbs. Each
Outer Dimensions (inches)1x1x1
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Lamp power
- 6W
- Colour housing
- White
- Voltage type
- AC/DC
- Width
- 587mm
Lamp typeLED exchangeable
Material housingSteel
Battery qualityLead
Nominal voltage120-347V
Height/depth352mm
North American Specifications (UNSPSC)
- UNSPSC
- 39111709 Emergency light unit
- Brand Name
- Lumacell
- Application
- Institutional, Commercial, Hospitality
- Wattage
- 350W
- Battery
- Lead-calcium
- Lamp Type
- MR16 LED
- Size
- 13-7/8 Inches Height x 23-1/8 Inches Width
- Mounting
- Wall
- Lamp Wattage
- 6W
IGCC3940 Emergency light unit
TypeBattery Unit
StandardCSA
Voltage Rating120/347VAC, 24VDC
Battery Runtime30 minutes
Number Of Lamps2
MaterialCabinet: Steel
ColorPolar white
