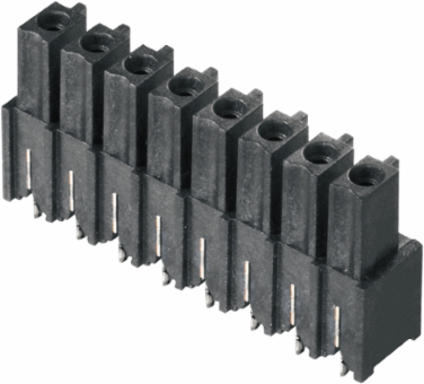

Weidmuller 1976590000 PCB Connector, 9 Poles, 3.81 mm, 1.5 mm Solder Pin Length, Black

MPN: 1976590000
PPN: WDM-1976590000

$6.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PCB plug-in connector, female header, closed side, THT/THR solder connection, 3.81 mm, Number of poles: 9, 180°, Solder pin length (l): 1.5 mm, tinned, black, Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	10 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A

Approvals

Approvals	cURus, EAC
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Net weight	3.125 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984

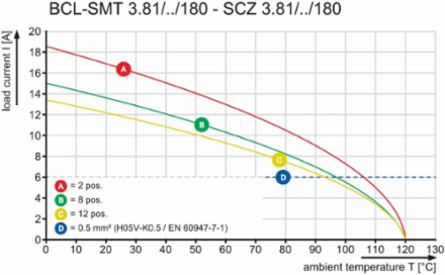

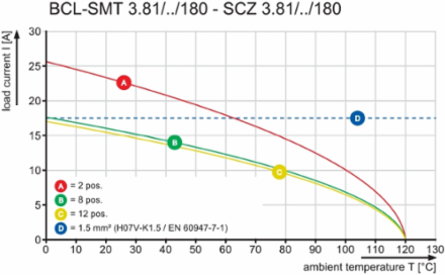

Rated current, max. number of poles (Tu=20°C)	15.4 A
Rated current, max. number of poles (Tu=40°C)	13.8 A
Rated voltage for surge voltage class / pollution degree III/2	160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	2.5 kV

Rated current, min. number of poles (Tu=20°C)	17.5 A
Rated current, min. number of poles (Tu=40°C)	17.5 A
Rated voltage for surge voltage class / pollution degree II/2	320 V
Rated voltage for surge voltage class / pollution degree III/3	160 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	2.5 kV
Short-time withstand current resistance	3 x 1s with 76 A

Material Data

Insulating material	LCP GF
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 175
Moisture Level (MSL)	1
GWIT	930 °C
Contact material	Copper alloy
Layer structure of solder connection	1-3 µm Ni / 2-4 µm Sn matt
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Colour	black
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
UL 94 flammability rating	V-0
GWFI	960 °C
Contact surface	tinned
Layer structure of plug contact	1-3 µm Ni / 2-4 µm Sn matt
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02
UNSPSC	30-21-18-01

Packing

Packaging	Box
VPE width	120 mm

VPE length	20 mm
VPE height	185 mm

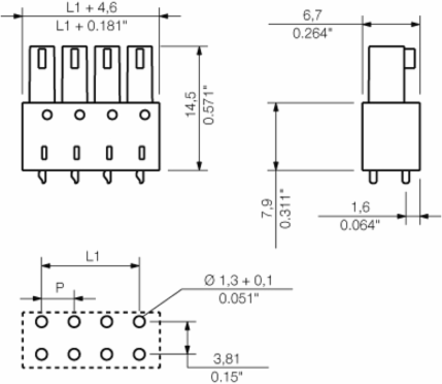

System Specifications

Product family	OMNIMATE Signal - series BC/SC 3.81
Mounting onto the PCB	THT/THR solder connection
Pitch in inches (P)	0.15 inch
Number of poles	9
Solder pin length (l)	1.5 mm
Tolerance of solder pin position	± 0.1 mm
Solder pin dimensions = d tolerance	+0,05 / -0,05 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Template aperture diameter	1.6 mm
L1 in inches	1.2 inch
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 0470	IP 20
Can be coded	Yes
Plugging force/pole, max.	9.5 N

Type of connection	Board connection
Pitch in mm (P)	3.81 mm
Outgoing elbow	180°
Number of solder pins per pole	2
Solder pin length tolerance	0 / -0,02 mm
Solder pin dimensions	d = 0.8 mm
Solder eyelet hole diameter (D)	1.2 mm
Outside diameter of solder pad	1.9 mm
L1 in mm	30.48 mm
Number of rows	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Volume resistance	6.00 mΩ
Plugging cycles	25
Pulling force/pole, max.	6 N

Notes

Notes	Rated current related to rated cross-section & min. No. of poles. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
