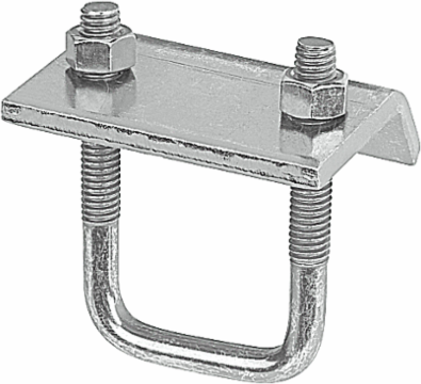

Superstrut U501 HDG Beam Clamps (Series 500)

Beam Clamps (Series 500) - https://media.province-electric.com/ThomasAndBetts/2018q3/efefd504359a65b28548bc674a7e61720e1a6e24-medium.png

MPN: U501 HDG
PPN: T-B-U501 HDG

Spec sheet

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$10.24/ EA

Qty:

Loading add to cart quantity...

Description

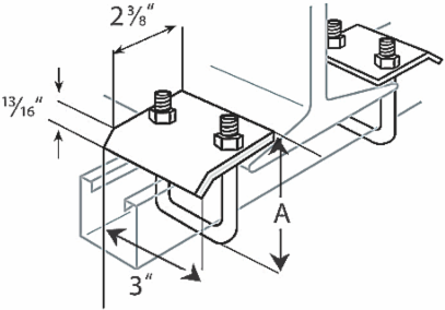

Clamp, Channel to Beam, Height 3-3/16 Inches, Plate Width 3 Inches, Plate Length 2-3/8 Inches, Plate Thickness 13/16 Inch, Hot-Dip Galvanized Steel, For use with A-1200, B-1200, C-1200, A-1400, B-1400 and B-1402 Series Channels

Specifications

North American Specifications (UNSPSC)

UNSPSC: 31162905 Beam clamps

Brand Name: Superstrut

Application: For use with A-1200, A-1400, B-1200, B-1400, C-1200 and B-1402 Series Channel.

Maximum Load: 2,150 Pounds

Length: 2-3/8 in

IGCC3063 Beam clamps

TypeBeam Clamps (Series 500)

MaterialSteel

FinishHot-Dip Galvanized

Width3 in

European Specifications (ETIM)

ETIM: EC000474 Screw clamp

Material quality: Other

MaterialSteel

Surface protectionHot dip galvanized

Packaging

Outer Quantity: 20

Weight Uom: 64 lbs. per 100

Outer Dimensions (inches)10.7x7.5x6
