Schneider Electric

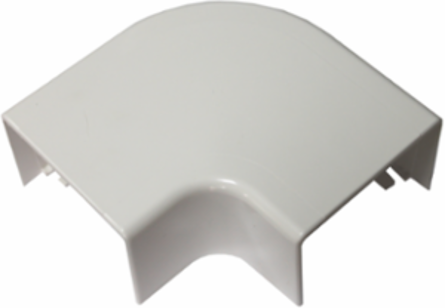

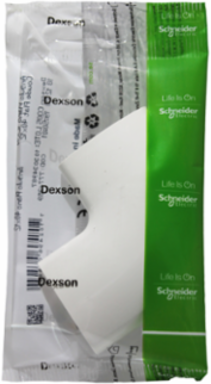

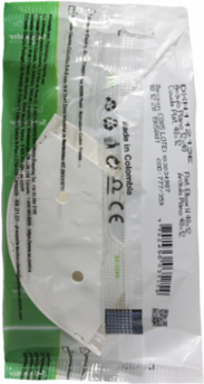

Schneider Electric DXN11213E Dexson 90 Degree Bend, 40 x 12 mm, ABS + PC, IP40

  • MPN: DXN11213E
  • PPN: SCH-DXN11213E

CAD

$2.60

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Engineered for versatility in electrical installations, this 90-degree bend by Schneider Electric is an essential component for effective cable management. Constructed from durable ABS and PC materials, it ensures reliability in performance, while its IP40 rating provides a base level of protection against dust and foreign objects. With its dimensions of 40 x 12 mm, this bend is designed to seamlessly integrate into your existing system, delivering precise routing within confined spaces. Ideal for both commercial and industrial applications, it supports efficient installation while maintaining a clean and organized look.

Documentation & Downloads

Specifications

Key Specifications

Beam Angle90 °
Product Or Component Typebend
Quantity Per Set1 piece

Complementary

Height12 mm
Surface Finishglossy
Trunking Dimension40 x 12 mm
MaterialABS + PC
Fixing Modeby click-on
Width40 mm
Length40.0 mm

Environment

Flame RetardanceM1 IEC 61084-1
StandardsIEC 61084-1:1991
Ip Degree Of ProtectionIP40
Ambient Air Temperature For Operation-5-60 °C
Ik Degree Of ProtectionIK07

Contractual warranty

Warranty5 years

Offer Sustainability

China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Environmental DisclosureENVPEP2209017EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Dexson 90 Degree Bend, 40 x 12 mm, ABS + PC, IP40
Dexson 90 Degree Bend, 40 x 12 mm, ABS + PC, IP40
Dexson 90 Degree Bend, 40 x 12 mm, ABS + PC, IP40
