Weidmuller 1000590000 PCB Connector 3.50 mm, 30 Poles, PUSH IN, Max. Clamping Range 1.5 mm2
- MPN: 1000590000
- PPN: WDM-1000590000
CAD
$49.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

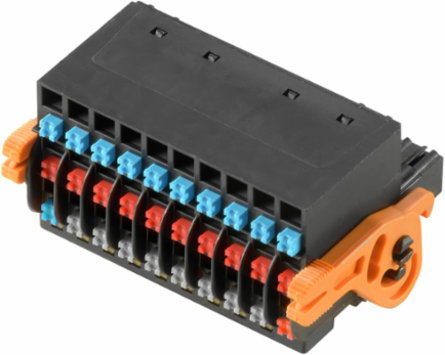

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 30, 180°, PUSH IN, Tension-clamp connection, Clamping range, max. : 1.5 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 50 V
- Rated current (Use group B / UL 1059)
- 5 A
- Wire cross-section, AWG, min.
- AWG 24
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)50 V
Rated current (Use group D / UL 1059)5 A
Wire cross-section, AWG, max.AWG 16
Approvals
- Approvals
- EAC, UR
- UL File Number Search
- E60693
ROHSConform

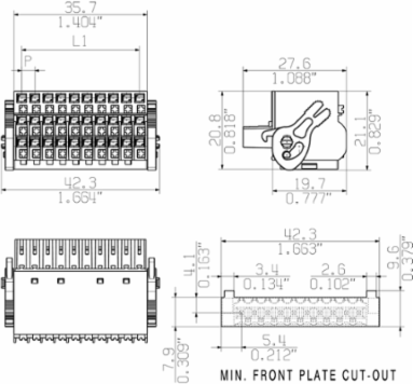

Dimensions And Weights
- Width
- 42.3 mm
- Height
- 18.4 mm
- Net weight
- 23.25 g
Width (inches)1.665 inch
Height (inches)0.724 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 2 A
- Rated current, max. number of poles (Tu=40°C)
- 2 A
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 0.8 kV
Rated current, min. number of poles (Tu=20°C)2.2 A
Rated current, min. number of poles (Tu=40°C)2.2 A
Rated voltage for surge voltage class / pollution degree III/350 V
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- PBT
- Colour of operational elements
- grey, blue, red
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- Copper alloy
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 75 °C
- Temperature range, installation, max.
- 75 °C
Colourblack
Material of operational elementsPBT
Insulating material groupIIIa
Insulation strength≥ 108 Ω
Contact base materialCopper alloy
Contact surfacetinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-30 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Product family
- OMNIMATE Signal - series BL/SL 3.50
- Wire connection method

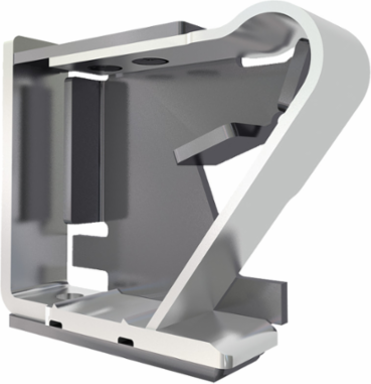

- PUSH IN, Tension-clamp connection
- Pitch in inches (P)
- 0.138 inch
- Number of poles
- 30
- L1 in inches
- 1.24 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
- Can be coded
- Yes
- Screwdriver blade
- 0.4 x 2.5
- Plugging force/pole, max.
- 6 N
Type of connectionField connection
Pitch in mm (P)3.5 mm
Conductor outlet direction180°
L1 in mm31.5 mm
Number of rows1
Rated cross-section1 mm²
Touch-safe protection acc. to DIN VDE 0470IP 20
Stripping length8 mm
Screwdriver blade standardDIN 5264
Pulling force/pole, max.6 N
Packing
- Packaging
- Box
- VPE width
- 110 mm
VPE length37 mm
VPE height186 mm
Notes
- Notes

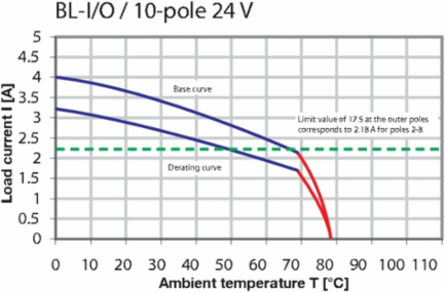

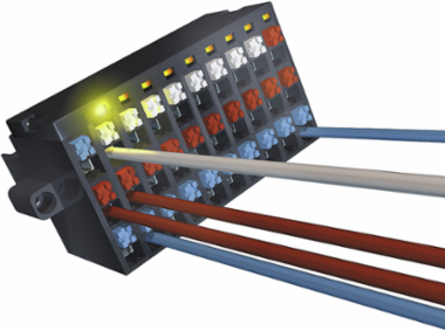

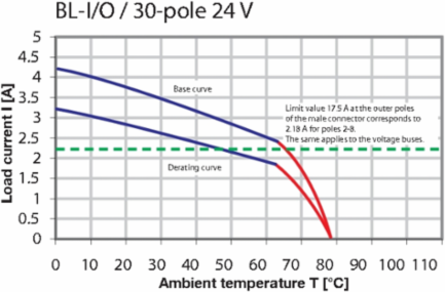

- Additional colours on request P on drawing = pitch Crimp form A for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes. Total load-carrying capacity of the potential bridges when feeding with 1.5 mm² is max. 17.5 A (so the capacity is 2.18 A for poles 2 through 9) Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 Conductor < 0.2 mm² tinned Max. outer diameter of the conductor: 2.9 mm Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. LED operating voltage: 10 - 30V; LED operating current: 0.8mA at 24V
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.2 mm²
- Wire connection cross section AWG, min.
- AWG 24
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.2 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.2 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 2.4 mm x 1.5 mm; 1.9mm
- Max. clamping range
- 1.5 mm²
Clamping range, max.1.5 mm²
Wire connection cross section AWG, max.AWG 16
Solid, max. H05(07) V-U1.5 mm²
Flexible, max. H05(07) V-K1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.0.75 mm²
w. wire end ferrule, DIN 46228 pt 1, max.1 mm²
Reference textThe outside diameter of the plastic collar should not be larger than the pitch (P).
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 50 V
- Rated current (Use group B / CSA)
- 5 A
- Wire cross-section, AWG, min.
- AWG 22
Rated voltage (Use group D / CSA)50 V
Rated current (Use group D / CSA)5 A
Wire cross-section, AWG, max.AWG 16
