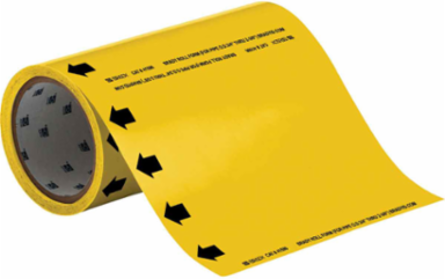

Brady 41596 Blank Pipe Marker 30 ft H x 8 in W Fits Pipes 2 in Dia. or Smaller
Brady 41596 Blank Pipe Marker 30 ft H x 8 in W Fits Pipes 2 in Dia. or Smaller
- MPN: 41596
- UPC: 754473415969
- PPN: BRD-41596
- UNSPSC: 55121737
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$181.13/ EA
Description
Roll Form pipe markers eliminate the need for precise measurement of pipe diameter - simply cut to the size you need.
Features
- B-946 vinyl is printed with weather resistant inks and is suited for use in outdoor applications where weatherability is a key consideration.
- Designed for permanent applications in severe indoor or outdoor environments
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Specifications
Specifications
- Applications
- Pipe and Valve Marking
- Color
- Yellow
- Enables Industry Compliance
- ASTM D 2979
- Pipe Marker Mounting Style
- Self-Adhesive
- Primary Noun, Basic Function
- Pipe Marker
- Reflective Type
- Non-Reflective
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Vinyl
- SAP B-Number
- B-946
- Dimensions
- 30 ft H x 8 in W x 30 ft L
- Dimensions 2
- 30 ft H x 8 in W
- Height (mm/cm/m)
- 9.14 m
- Maximum Outside Pipe Diameter (mm/cm/m)
- 50.8 mm
- Maximum Service Temperature °F
- 180 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Service Temperature °F
- -40 °F
- Roll Width (in/ft/yd)
- 12 in
- Roll/Tape Length (in/ft/yd)
- 30 ft
- Roll/Tape Size (in/ft/yd)
- 30 ft H x 8 in W x 30 ft L
- Sign Size-General
- 30 ft x 8 in
- Thickness (mm/cm/m)
- 0.102 mm
- Width (mm/cm/m)
- 203.2 mm
Brand NameBrady®
Compatible Surface TypesGeneral
FinishGloss
Pre-Printed Areas on LabelNone
Printer and Label ApplicationsGeneral Identification; Pipe Marker
Self-Adhesive Pipe Marker FormatRoll Form, Continuous
Brady Material NumberB-946
Label PropertiesAggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Average Outdoor Durability8 to 10 Years
Dimensions (Metric)9.14 m H
Height (in/ft/yd)30 ft
Maximum Outside Pipe Diameter (in/ft/yd)2 in
Maximum Service Temperature °C82 °C
Minimum Application Temperature °C-18 °C
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 2in Dia. or smaller
Roll Width (mm/cm/m)304.8 mm
Roll/Tape Length (mm/cm/m)9.14 m
Roll/Tape Size (mm/cm/m)304.8 mm W x 9.14 m L
Thickness (in/ft/yd)0.004 in
Width (in/ft/yd)8 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
