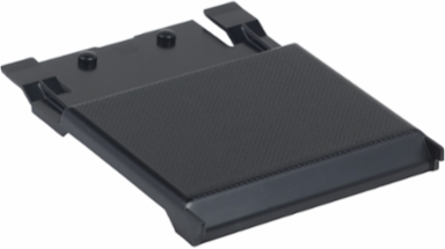

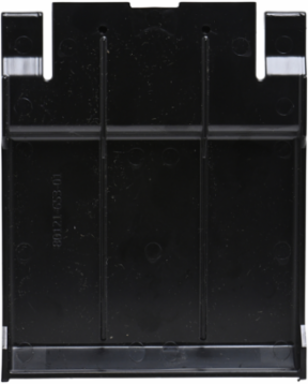

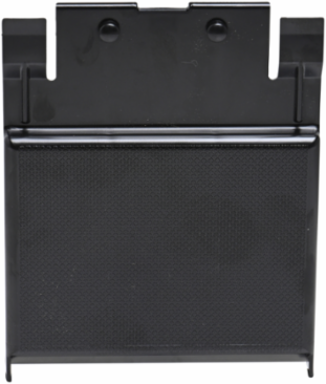

Square D HLW4EBL I-Line Blank Plates, 4.5 Inch, Set of 5, J/H Frame Compatible
- MPN: HLW4EBL
- UPC: 785901778721
- PPN: SCH-HLW4EBL
- UNSPSC: 39121112
CAD
$35.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This blank plate used for H and J frame. It has a quantity of 5 and is 4.5 inches.
Features
- This 4.5-inch blank extension plate is specifically engineered for the wide side of Square D I-Line power distribution panelboards and switchboards. It provides a precise mechanical fit over empty chassis spaces, allowing facility managers and industrial electricians to modify layouts without replacing the entire enclosure interior.
- Designed explicitly for positions matching H-frame and J-frame molded case circuit breakers, these blanking plates are optimized for configurations utilizing Micrologic trip circuit breakers. They seamlessly align next to your existing smart distribution hardware, eliminating spacing guesswork during complex panel reconfigurations or system upgrades.
- This manufacturer-certified kit comes as a convenient bulk pack of 5 individual blank plates, giving contractors and plant engineers a cost-effective, ready-to-install inventory. Having a complete set on hand prevents project downtime during unexpected plant expansions, service entry maintenance, or panelboard repowering.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 114 mm |
|---|
Important Information Attributes
| Circuit Breaker Type | J-frame, H-frame |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 5 |
| Returnability | Yes |
| Height Nominal | 114 mm |
| Customs Code | 8538908160 |
| Certificate Agency | CSA, UL |
|---|---|
| Local Publishable Date | 2026-08-27 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Energy Efficiency Optimized | False |
| Product Or Component Type | blank plate |
| Range Of Product | I-Line |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | blank plate |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
