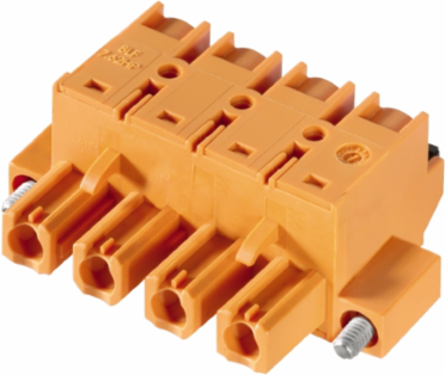

Weidmuller 1043880000 OMNIMATE Power PCB Connector, 7.62mm, 3 Poles, Push In, 20A, 1000V

MPN: 1043880000
PPN: WDM-1043880000

$4.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 3, PUSH IN, Clamping range, max. : 2.5 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	600 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group C / UL 1059)	20 A
Wire cross-section, AWG, min.	AWG 20
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group C / UL 1059)	600 V
Rated current (Use group B / UL 1059)	20 A
Rated current (Use group D / UL 1059)	5 A
Wire cross-section, AWG, max.	AWG 12

Approvals

Approvals	CSA, cURus, EAC
UL File Number Search	E60693

ROHS	Conform

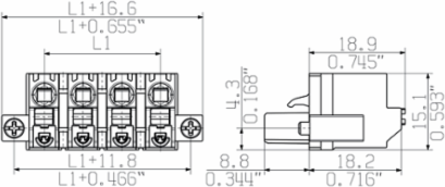

Dimensions And Weights

Height	15.1 mm
Depth	28.1 mm
Net weight	9.48 g

Height (inches)	0.594 inch
Depth (inches)	1.106 inch

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984

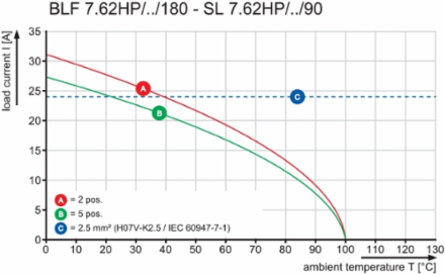

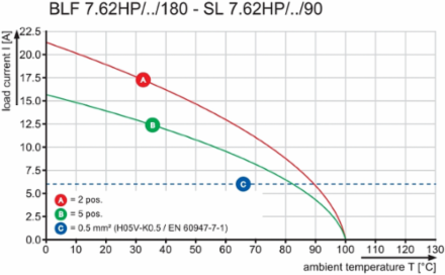

Rated current, max. number of poles (Tu=20°C)	24 A
Rated current, max. number of poles (Tu=40°C)	21 A
Rated voltage for surge voltage class / pollution degree III/2	1,000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	6 kV
Clearance, min.	11.4 mm

Rated current, min. number of poles (Tu=20°C)	24 A
Rated current, min. number of poles (Tu=40°C)	23.8 A
Rated voltage for surge voltage class / pollution degree II/2	1,000 V
Rated voltage for surge voltage class / pollution degree III/3	630 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV
Short-time withstand current resistance	3 x 1s with 180 A
Creepage distance, min.	11.4 mm

Material Data

Insulating material	PBT
Colour of operational elements	black
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	Copper alloy
Layer structure of plug contact	4-8 µm Sn hot-dip tinned
Storage temperature, max.	55 °C
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Colour	orange
Material of operational elements	PBT
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
GWFI	960 °C
Contact surface	tinned
Storage temperature, min.	-25 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002638
eClass 9.0	27-44-03-09
eClass 10.0	27-44-03-09

ETIM 7.0	EC002638
eClass 9.1	27-44-03-09
UNSPSC	30-21-18-01

System Parameters

Product family	OMNIMATE Power - series BL/SL 7.62HP
Wire connection method	PUSH IN
Pitch in inches (P)	0.3 inch
L1 in mm	15.24 mm
Number of rows	1
Rated cross-section	2.5 mm²
Touch-safe protection acc. to DIN VDE 0470	IP 20
Stripping length	10 mm
Tightening torque for screw flange, max.	0.25 Nm
Plugging cycles	25
Pulling force/pole, max.	6 N

Type of connection	Field connection
Pitch in mm (P)	7.62 mm
Number of poles	3
L1 in inches	0.6 inch
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Can be coded	Yes
Tightening torque for screw flange, min.	0.15 Nm
Screwdriver blade	0.6 x 3.5
Plugging force/pole, max.	8.5 N

Packing

Packaging	Box
VPE width	135 mm

VPE length	30 mm
VPE height	350 mm

Notes

Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.08 mm²
Wire connection cross section AWG, min.	AWG 20
Solid, min. H05(07) V-U	0.5 mm²
Flexible, min. H05(07) V-K	0.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.5 mm²
Plug gauge in accordance with EN 60999 a x b; ø	2.8 mm x 2.0 mm

Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 12
Solid, max. H05(07) V-U	1.5 mm²
Flexible, max. H05(07) V-K	2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	2.5 mm²
Max. clamping range	2.5 mm²

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated current (Use group C / CSA)	21 A
Wire cross-section, AWG, min.	AWG 20
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (CSA)	200039-1121690
Rated voltage (Use group C / CSA)	600 V
Rated current (Use group B / CSA)	21 A
Rated current (Use group D / CSA)	5 A
Wire cross-section, AWG, max.	AWG 12
