Description

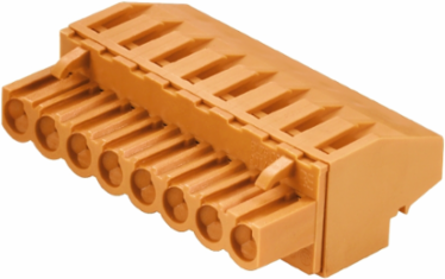

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 7, 270°, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 20 A
- Wire cross-section, AWG, min.
- AWG 26
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Wire cross-section, AWG, max.AWG 12
Approvals
- Approvals
- CSA, cURus, EAC, KEMAKEUR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 35.56 mm
- Height
- 14.1 mm
- Depth
- 27.2 mm
- Net weight
- 14.25 g
Width (inches)1.4 inch
Height (inches)0.555 inch
Depth (inches)1.071 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 18 A
- Rated current, max. number of poles (Tu=40°C)
- 16 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)23 A
Rated current, min. number of poles (Tu=40°C)21 A
Rated voltage for surge voltage class / pollution degree II/2400 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- Copper alloy
- Layer structure of plug contact
- 4-8 µm Sn hot-dip tinned
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Insulating material groupIIIa
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
UNSPSC30-21-18-01
System Parameters
- Product family
- OMNIMATE Signal - series BL/SL 5.08
- Wire connection method
- Clamping yoke connection
- Pitch in inches (P)
- 0.2 inch
- Number of poles
- 7
- L1 in inches
- 1.2 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
- Can be coded
- Yes
- Tightening torque, min.
- 0.4 Nm
- Clamping screw
- M 2.5
- Screwdriver blade standard
- DIN 5264, ISO 8764/2-PH, ISO 8764/2-PZ
- Plugging force/pole, max.
- 10 N
Type of connectionField connection
Pitch in mm (P)5.08 mm
Conductor outlet direction270°
L1 in mm30.48 mm
Number of rows1
Rated cross-section4 mm²
Volume resistance5.00 mΩ
Stripping length7 mm
Tightening torque, max.0.5 Nm
Screwdriver blade0.6 x 3.5, PH 1, PZ 1
Plugging cycles25
Pulling force/pole, max.9 N
Packing
- Packaging
- Box
- VPE width
- 135 mm
VPE length30 mm
VPE height350 mm
Notes
- Notes
- Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.13 mm²
- Wire connection cross section AWG, min.
- AWG 30
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.2 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.2 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 2.8 mm x 2.4 mm
- Max. clamping range
- 4 mm²
Clamping range, max.4 mm²
Wire connection cross section AWG, max.AWG 12
Solid, max. H05(07) V-U4 mm²
Flexible, max. H05(07) V-K4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.4 mm²
Reference textThe outside diameter of the plastic collar should not be larger than the pitch (P).
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated voltage (Use group D / CSA)
- 300 V
- Rated current (Use group D / CSA)
- 20 A
- Wire cross-section, AWG, max.
- AWG 12
Certificate No. (CSA)200039-1121690
Rated voltage (Use group C / CSA)50 V
Rated current (Use group B / CSA)20 A
Wire cross-section, AWG, min.AWG 30
Reference to approval valuesSpecifications are maximum values, details - see approval certificate.
