Schmersal 101194059 BNS-Y-11 Y-Adapter with IP67 Protection, M8 Connector, 31 mm Height
- MPN: 101194059
- PPN: SCM-101194059
CAD
$71.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

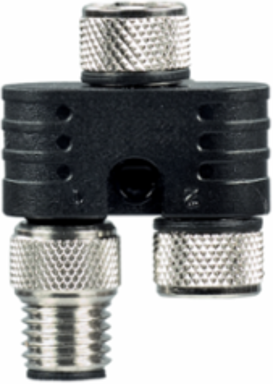

BNS-Y-11 Y-Adapter with IP67 Protection, M8 Connector, 31 mm Height
Documentation & Downloads
Specifications
Key Specifications
| Length | 10 mm |
|---|---|
| Height | 31 mm |
| Width | 23.5 mm |
|---|
Note

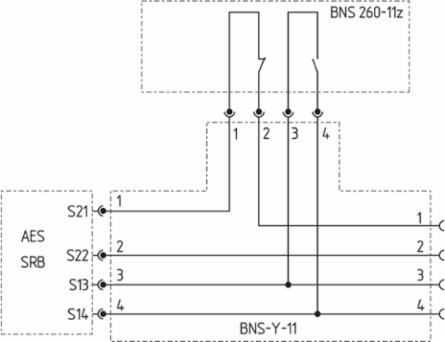

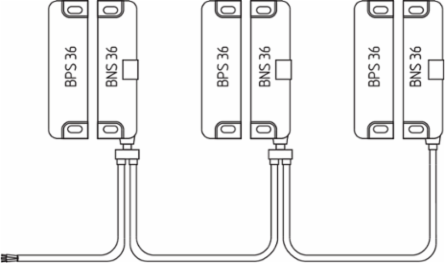

| Note (General) | Any conventional 4-pole cable with M8 connector can be used as connecting cable. | The sensor chain is extended by connecting further Y-adapters in the direction of the arrow. The last safety sensor is connected to the female connector on the extension as the termination. | Only safety sensors with the same contact configuration can be connected in series. The types BNS-Y-11 and BNS-Y-02 are not allowed to be connected together in a mixed configuration. | The maximum length of the series wiring is 50 m. | The adapter BNS-Y-11 is intended for safety sensors BNS with normally closed and normally open contacts. With the BNS-Y-11, a series-parallel circuit is set up where the normally closed contacts on the safety sensors are connected in series and the normally open contacts are connected in parallel. |
|---|
Mechanical data - Dimensions
| Width | 23.5 mm |
|---|---|
| Diameter of the ISO-thread | M8 |
| Height | 31 mm |
|---|
General data
| Versions | Y-adapter |
|---|---|
| Gross weight | 22 g |
| Connector (electric) | 2 x Female connector, 4-pole | 1 x Male connector, 4-pole |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|
| Ambient temperature | -25 ... +70 °C |
|---|
Mechanical data
| Mechanical life, minimum | 100 Cycles |
|---|
Accessory
| Recommendation (product combination) | BNS 33 | BNS 36 | BNS 260 |
|---|
