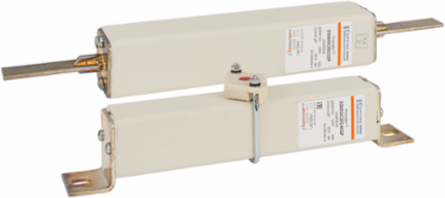

Mersen Q075753 Protistor 300 Fuse-Link gR 100 A 2000VDC 30 kA
- MPN: Q075753
- PPN: FER-Q075753
CAD
$3322.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
| Rated voltage DC IEC | 2000 V |
|---|---|
| AC or DC | DC |
| Fuse Size | 300 |
| Max. Rated Breaking Capacity DC | 30 kA |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Brass |
| Body/Insulating Material | Ceramic |
| Width | 2.28 in |
| Height | 2.48 in |
| Ampere Rating | 100 A |
|---|---|
| Speed/Characteristic | gR |
| Mounting | Bolted |
| Design Details | gRE |
| Indication System Type | Striker |
| Connection/Terminal Type | L Brackets |
| Power Dissipation at Rated Current Value | 50 W |
| Length | 10.55 in |
| Weight | 2.535 lb |
