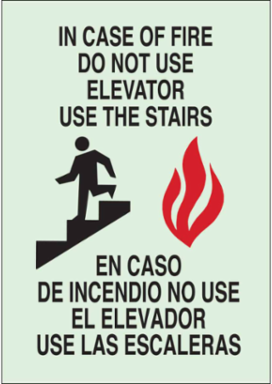

Brady 90188 BradyGlo Bilingual Fire Safety Sign, 14 Inch H x 10 Inch W, Glow in the Dark
- MPN: 90188
- UPC: 754473901882
- PPN: BRD-90188
- UNSPSC: 55121704
CAD
$54.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
B-324 BradyGlo™ material is a glow-in-the-dark (photoluminescent) pressure sensitive polyester.
Features
- B-324 is ideal for exit and directional signs, identification of fire alarms and extinguishers
- Photoluminescent material charges in 5 minutes at 1000 Lux for 10+ hours of glow time
- Consistent glow life and unlimited rechargability
- Service temperature of -40 to 176° F
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Color | Black/Red on Glow |
| Enables Industry Compliance | ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145 |
| Language | English; Spanish |
| Mounting Type | Self-Adhesive |
| Primary Noun, Basic Function | Sign |
| Reflective Type | Non-Reflective |
| Text Legend | IN CASE OF FIRE DO NOT USE ELEVATOR USE THE STAIRS |
| Write-On | No |
| Adhesive Type | Permanent Acrylic |
| Illumination | Glow in the Dark |
| Material | Photoluminescent Polyester |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant |
| Depth (in/ft/yd) | 0.008 in |
| Dimensions | 14 in H x 10 in W x 0.008 in D |
| Dimensions 2 | 14 in H x 10 in W |
| Height (mm/cm/m) | 35.56 cm |
| Maximum Service Temperature °F | 176 °F |
| Minimum Application Temperature °F | 50 °F |
| Minimum Service Temperature °F | -40 °F |
| Sign Size-General | 14 in x 10 in |
| Thickness (mm/cm/m) | 0.201 mm |
| Width (mm/cm/m) | 25.4 cm |
| Calculated Sign Shape | Vertical Rectangle |
|---|---|
| Compatible Surface Types | High Surface Energy |
| Image or Text | Image & Text |
| Meets Industry Standards - Signs | ANSI Z53.1-1967 |
| Number of Printed Sides | 1 |
| PSPA Photoluminescence Class | Class II |
| Shape | Rectangle |
| Trade Name | BradyGlo™ |
| Write-On Area | No |
| Brady Material Number | B-324 |
| Label Properties | Glow in the Dark Labels |
| Material Properties | Explosion-safe; Photoluminescent |
| SAP B-Number | B-324 |
| Depth (mm/cm/m) | 0.2 mm |
| Dimensions (Metric) | 35.56 cm H x 0.2 mm D |
| Height (in/ft/yd) | 14 in |
| Maximum Service Temperature °C | 80 °C |
| Minimum Application Temperature °C | 10 °C |
| Minimum Service Temperature °C | -40 °C |
| Sign Size | 14 in H x 10 in W x 0.008 in D |
| Thickness (in/ft/yd) | 0.0079 in |
| Width (in/ft/yd) | 10 in |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
