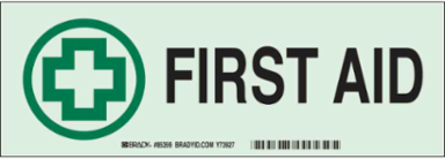

Brady 80245 BradyGlo First Aid Sign, 5 Inch H x 14 Inch W, Photoluminescent Polyester
Brady 80245 BradyGlo First Aid Sign, 5 Inch H x 14 Inch W, Photoluminescent Polyester
- MPN: 80245
- UPC: 754473802455
- PPN: BRD-80245
- UNSPSC: 55121704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$28.23/ EA
Description
B-324 BradyGlo™ material is a glow-in-the-dark (photoluminescent) pressure sensitive polyester.
Features
- B-324 is ideal for exit and directional signs, identification of fire alarms and extinguishers
- Photoluminescent material charges in 5 minutes at 1000 Lux for 10+ hours of glow time
- Consistent glow life and unlimited rechargability
- Service temperature of -40 to 176° F
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Green on Glow
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
- Language
- English
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Sign
- Reflective Type
- Non-Reflective
- Text Legend
- FIRST AID
- Write-On
- No
- Adhesive Type
- Permanent Acrylic
- Illumination
- Glow in the Dark
- Laminated
- Not Laminated
- Material Properties
- Explosion-safe; Photoluminescent
- SAP B-Number
- B-324
- Depth (mm/cm/m)
- 0.2 mm
- Dimensions (Metric)
- 127 mm H x 0.2 mm D
- Height (in/ft/yd)
- 5 in
- Maximum Service Temperature °C
- 80 °C
- Minimum Application Temperature °C
- 10 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 5 in H x 14 in W x 0.008 in D
- Thickness (in/ft/yd)
- 0.0079 in
- Width (in/ft/yd)
- 14 in
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesHigh Surface Energy
Image or TextImage & Text
Meets Industry Standards - SignsANSI Z53.1-1967
Number of Printed Sides1
PSPA Photoluminescence ClassClass II
ShapeRectangle
Trade NameBradyGlo™
Write-On AreaNo
Brady Material NumberB-324
Label PropertiesGlow in the Dark Labels
MaterialPhotoluminescent Polyester
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Depth (in/ft/yd)0.008 in
Dimensions5 in H x 14 in W x 0.008 in D
Dimensions 25 in H x 14 in W
Height (mm/cm/m)127 mm
Maximum Service Temperature °F176 °F
Minimum Application Temperature °F50 °F
Minimum Service Temperature °F-40 °F
Sign Size-General5 in x 14 in
Thickness (mm/cm/m)0.201 mm
Width (mm/cm/m)35.56 cm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
