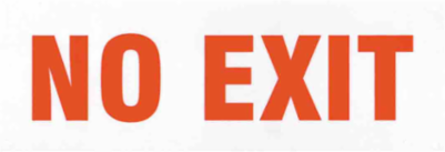

Brady SP029G BradyGlo No Exit Sign, 3.5 Inch H x 10 Inch W, Photoluminescent Polystyrene
- MPN: SP029G
- UPC: 754473443450
- PPN: BRD-SP029G
- UNSPSC: 55121704
CAD
$31.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BradyGlo™ Glow-In-The-Dark Plastic (B-347) features high performance photoluminescence material that is 100% reliable and virtually maintenance free.
Features
- Compliant to NFPA Life Safety Code 101 and 2015 IBC/IFC Regulation, OSHA 1910.37, NYC and current building codes
- Energy efficient, non-electric, nontoxic, non-radioactive and may qualify for LEED credits
- 50 ft. visibility allows for maximum effectiveness in low light or dark environments
- Service temperature of -40°F to 158°F (-40°C to 70°C)
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Black/Red on Glow
- Finish
- Gloss
- Language
- English
- Number of Printed Sides
- 1
- PSPA Photoluminescence Class
- Class A
- Shape
- Rectangle
- Trade Name
- BradyGlo™
- Illumination
- Glow in the Dark
- Material Properties
- Photoluminescent; Rigid
- SAP B-Number
- B-347
- Depth (mm/cm/m)
- 1.6 mm
- Dimensions (Metric)
- 88.9 mm H x 1.6 mm D
- Height (in/ft/yd)
- 3.5 in
- Maximum Service Temperature °C
- 70 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 3.5 in H x 10 in W x 0.063 in D
- Thickness (in/ft/yd)
- 0.063 in
- Width (in/ft/yd)
- 10 in
Calculated Sign ShapeHorizontal Rectangle
Enables Industry ComplianceASTM E 162; ASTM E 2072-00; ASTM E 2073-00; ASTM E 648; ASTM E 662; DIN 67510; IMO Resolution A.752(18); ISO/CD 15370; OSHA 29 CFR 1910.37
Image or TextText Only
Mounting TypeCorner Holes
Primary Noun, Basic FunctionSign
Reflective TypeNon-Reflective
Text LegendNO EXIT
Brady Material NumberB-347
MaterialPhosphorescent Polyester Laminated Polystyrene
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Depth (in/ft/yd)0.063 in
Dimensions3.5 in H x 10 in W x 0.063 in D
Dimensions 23.5 in H x 10 in W
Height (mm/cm/m)88.9 mm
Maximum Service Temperature °F158 °F
Minimum Service Temperature °F-40 °F
Sign Size-General3.5 in x 10 in
Thickness (mm/cm/m)1.6 mm
Width (mm/cm/m)25.4 cm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
