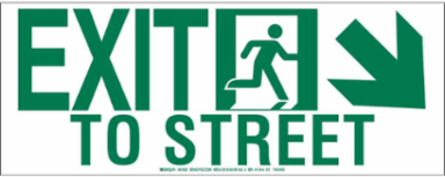

Brady 81834 BradyGlo Glow-in-the-Dark Exit Sign, 14 Inch H x 18 Inch W, Photoluminescent Polyester
Brady 81834 BradyGlo Glow-in-the-Dark Exit Sign, 14 Inch H x 18 Inch W, Photoluminescent Polyester
- MPN: 81834
- UPC: 754473818340
- PPN: BRD-81834
- UNSPSC: 55121704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$40.05/ EA
Description
BradyGlo™ High intensity laminate (B-523) is a glow-in-the-dark polyester film coated with an aggressive pressure sensitive adhesive.
Features
- Designed to provide high adhesion and luminance for egress marking in low light areas in and along stairwells of public buildings
- Non-toxic, non-radioactive, explosion-safe material features an aggressive pressure-sensitive synthetic rubber adhesive
- Complies with RS 6-1 and 6-1A of New York Local Law 26 including photoluminescence, washability, flammability, toxic gas generation and radioactivity
- Approved Model Numbers Accepted For Use, City of New York, Department of Buildings: MEA No. 218-05-M Vol. 3 BR: 41-9-6 UV
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Green on Glow
- Finish
- Gloss
- Language
- English
- Pictogram Description
- Exit Right Symbol
- Shape
- Rectangle
- Text Legend
- EXIT TO STREET
- Adhesive Type
- Permanent Synthetic Rubber
- Illumination
- Glow in the Dark
- Material Properties
- Explosion-safe; Photoluminescent
- Dimensions
- 14 in H x 18 in W
- Height (in/ft/yd)
- 14 in
- Maximum Service Temperature °F
- 176 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 14 in x 18 in
- Thickness (mm/cm/m)
- 0.239 mm
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesLow Surface Energy
Image or TextImage & Text
Number of Printed Sides1
Primary Noun, Basic FunctionSign
Sign Projection TypeFlat
Trade NameBradyGlo™
Brady Material NumberB-523
MaterialPhosphorescent Polyester
SAP B-NumberB-523
Dimensions 214 in H x 18 in W
Maximum Service Temperature °C80 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Sign Size14 in H x 18 in W
Thickness (in/ft/yd)0.0094 in
Width (in/ft/yd)18 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
