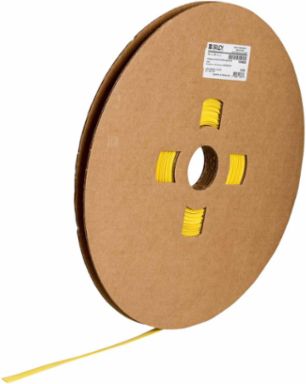

Brady LSZH-C-187-YL-J Low Smoke Zero Halogen Heat Shrink Tubing 0.187 Inch Dia x 175 Ft L, Yellow
Brady LSZH-C-187-YL-J Low Smoke Zero Halogen Heat Shrink Tubing 0.187 Inch Dia x 175 Ft L, Yellow
- MPN: LSZH-C-187-YL-J
- UPC: 662820998280
- PPN: BRD-LSZH-C-187-YL-J
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$473.30/ EA
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72
- Ribbon Series
- R6600
- Shrink Ratio
- 2:1
- Total Qty per Pack
- 1 Roll(s) / Roll
- Adhesive (Y/N)
- No
- Continuous & Die-Cut Materials Supported
- Continuous Tapes Only
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Self-Extinguishing; Smear-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.187 in
- Dimensions
- 0.335 in H
- Dimensions 2
- 0.335 in H
- Height (mm/cm/m)
- 8.5 mm
- Maximum Service Temperature °F
- 221 °F
- Maximum Wire Diameter (mm/cm/m)
- 3.81 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.094 in
- Minimum Wire Gauge
- 16 AWG
- Recovered Diameter (mm/cm/m)
- 2.4 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.64 mm
- Roll Length (mm/cm/m)
- 53.34 m
- Size - Width (mm)
- 8.51 mm
- Sleeve Size (mm/cm/m)
- 4.8 mm Dia x 53.34 m L
- Wire Gauge Range
- 16 AWG to 10 AWG
Brand NameBrady®
Enables Industry ComplianceBS6853 (1999) Vehicle Category 1a; EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Method 215K; MIL-STD-202G; RoHS Compliant
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Printer CompatibilityBBP72
Recommended RibbonR6406
ShapeContinuous
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Trade NamePermaSleeve®
Brady Material NumberB-7641
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-NumberB-7641
Diameter as Supplied (mm/cm/m)4.8 mm
Dimensions (Metric)8.51 mm W x 8.5 mm H x 53.34 m L
Height (in/ft/yd)0.335 in
Maximum Service Temperature °C105 °C
Maximum Wire Diameter (in/ft/yd)0.15 in
Maximum Wire Gauge10 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)2.39 mm
Recovered Diameter (in/ft/yd)0.094 in
Recovered Wall Thickness (in/ft/yd)0.025 in
Roll Length (in/ft/yd)175 ft
Size - Length (m)53.34 m
Sleeve Size (in/ft/yd)0.187 in Dia x 175 ft L
Wire Diameter Range0.094 in to 0.15 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
