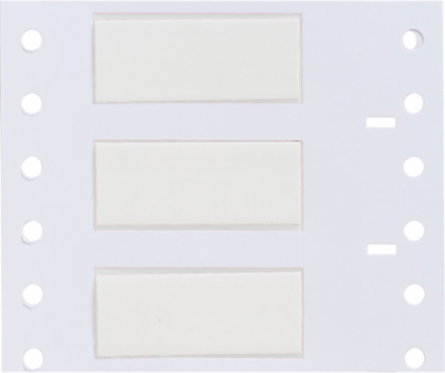

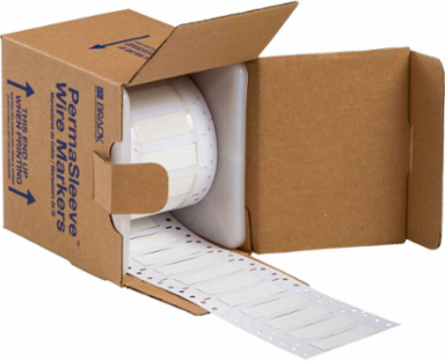

Brady LSZH-500-150-WT-S PermaSleeve Heat Shrink Tubing, 0.5 Inch Dia, 1.5 Inch W, 250 Pack
Brady LSZH-500-150-WT-S PermaSleeve Heat Shrink Tubing, 0.5 Inch Dia, 1.5 Inch W, 250 Pack
- MPN: LSZH-500-150-WT-S
- UPC: 662820825548
- PPN: BRD-LSZH-500-150-WT-S
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$736.30/ EA
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
- Quantity per Row
- 1
- Ribbon Series
- R6600
- Sleeve Slits
- No
- Total Qty per Pack
- 250 Label(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-7641
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20
- Diameter as Supplied (mm/cm/m)
- 12.7 mm
- Dimensions (Metric)
- 38.10 mm W x 21.60 mm H
- Height (in/ft/yd)
- 0.851 in
- Maximum Service Temperature °C
- 105 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.45 in
- Maximum Wire Gauge
- 1 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 6.35 mm
- Recovered Diameter (in/ft/yd)
- 0.25 in
- Recovered Wall Thickness (in/ft/yd)
- 0.028 in
- Roll Width (in/ft/yd)
- 1.5 in
- Size - Width (mm)
- 38.10 mm
- Sleeve Size (mm/cm/m)
- 12.7 mm Dia x 38.1 mm W
- Sleeve Width (mm/cm/m)
- 38.1 mm
- Vertical Repeat (mm)
- 31.75 mm
- Web Width (mm/cm/m)
- 88.65 mm
- Wire Gauge
- 3-1
Brand NameBrady®
Enables Industry ComplianceASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; Halogen Free (DIN VDE 0472 part 815); MIL-STD-202; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll250
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Quantity per Roll250
Recommended RibbonIP-R6007; R6007
Shrink Ratio2:1
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Total Quantity250
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-NumberB-7641
Diameter as Supplied (in/ft/yd)0.5 in
Dimensions0.851 in H
Dimensions 20.851 in H
Height (mm/cm/m)21.60 mm
Maximum Service Temperature °F221 °F
Maximum Wire Diameter (mm/cm/m)11.43 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.25 in
Minimum Wire Gauge6 AWG
Recovered Diameter (mm/cm/m)6.4 mm
Recovered Wall Thickness (mm/cm/m)0.71 mm
Roll Width (mm/cm/m)38.1 mm
Sleeve Size (in/ft/yd)0.5 in Dia x 1.5 in W
Sleeve Width (in/ft/yd)1.5 in
Vertical Repeat1.25 in
Web Width (in/ft/yd)3.49 in
Wire Diameter Range0.25 in to 0.45 in
Wire Gauge Range6 AWG to 1 AWG
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
