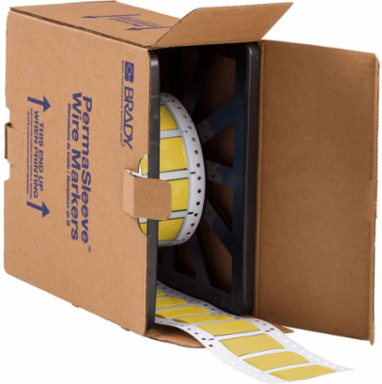

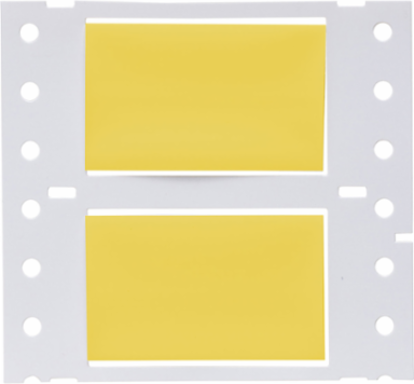

Brady LSZH-750-150-YL PermaSleeve Heat Shrink Tubing 0.75 Inch Diameter, Yellow, 250 Count

MPN: LSZH-750-150-YL
UPC: 662820815556
PPN: BRD-LSZH-750-150-YL
UNSPSC: 55121612

$714.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.

Features

Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
Compatible with the most stringent requirements in the market today to enhance fire safety needs
2:1 heat-shrink ratio
Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon

Documentation & Downloads

Specifications

Key Specifications

Applications	Electrical Labeling; Wire and Cable Labeling
Color	Yellow
Finish	Matte
Label/Media Format	Roll
Primary Noun, Basic Function	Sleeve
Printable Sides	Single-Side Printable
Printer Compatibility	BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
Quantity per Row	1
Ribbon Series	R6600
Sleeve Slits	No
Total Qty per Pack	250 Label(s) / Roll
Trade Name	PermaSleeve®
Brady Material Number	B-7641
Material	Heat-shrink Polyolefin
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)	76.20
Diameter as Supplied (mm/cm/m)	19.1 mm
Dimensions (Metric)	38.10 mm W x 31.75 mm H
Height (in/ft/yd)	1.25 in
Maximum Service Temperature °C	105 °C
Maximum Wire Diameter (in/ft/yd)	0.7 in
Maximum Wire Gauge	4/0 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	9.53 mm
Recovered Diameter (in/ft/yd)	0.375 in
Recovered Wall Thickness (in/ft/yd)	0.031 in
Roll Width (in/ft/yd)	1.5 in
Size - Width (mm)	38.10 mm
Sleeve Size (mm/cm/m)	19.1 mm Dia x 38.1 mm W
Sleeve Width (mm/cm/m)	38.1 mm
Vertical Repeat (mm)	41.28 mm
Web Width (mm/cm/m)	88.65 mm
Wire Gauge	2-250

Brand Name	Brady®
Enables Industry Compliance	ASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; Halogen Free (DIN VDE 0472 part 815); MIL-STD-202; SAE-AS-81531
For Use with Printer	BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll	250
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Quantity per Roll	250
Recommended Ribbon	IP-R6007; R6007
Shrink Ratio	2:1
Suggested Ribbon Series	R6000 Halogen Free; R6600
Total Quantity	250
Adhesive (Y/N)	No
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-Number	B-7641
Diameter as Supplied (in/ft/yd)	0.75 in
Dimensions	1.25 in H
Dimensions 2	1.25 in H
Height (mm/cm/m)	31.75 mm
Maximum Service Temperature °F	221 °F
Maximum Wire Diameter (mm/cm/m)	17.78 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.375 in
Minimum Wire Gauge	2 AWG
Recovered Diameter (mm/cm/m)	9.5 mm
Recovered Wall Thickness (mm/cm/m)	0.79 mm
Roll Width (mm/cm/m)	38.1 mm
Sleeve Size (in/ft/yd)	0.75 in Dia x 1.5 in W
Sleeve Width (in/ft/yd)	1.5 in
Vertical Repeat	1.625 in
Web Width (in/ft/yd)	3.49 in
Wire Diameter Range	0.375 in to 0.7 in
Wire Gauge Range	2 AWG to 4/0 AWG
