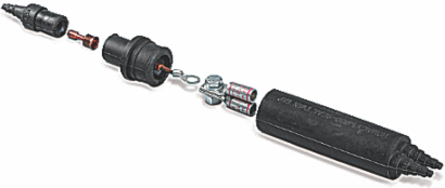

Homac FYA 1/0 Break-Away Streetlight Kits
- MPN: FYA 1/0
- UPC: 783786727483
- PPN: T-B-FYA 1/0
CAD
$155.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits Y-Type, fused, wire size stranded 1/0, aluminum run copper tap fused, installing dies 52,BG,243,5/8
Features
- EPDM Rubber Housing Ensures a Fully Insulated, Watertight and Submersible Connection.
- Safe Separations - Fuse or Connecting Link Stays in Load Side When Separated.
- Dual-Rated and Approved for a Wide Range of Aluminum or Copper Conductors.
- Rated for 600V, 30 Amp Maximum - Perfect for Heavy-Duty Applications.
Specifications
Packaging
- Outer Quantity
- 25
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Homac
- Special Features
- EPDM Flood-Seal Housing ensures a fully insulated, watertight, and submersible connection. Safe separations to ensure fuse or connecting link stays in load side when separated. Dual-Rated. Approved for a wide range of aluminum or copper connections.
- Size
- 9-3/4 inch Maximum length
- Conductor Range
- 1/0 Stranded
- Material
- Aluminum and Copper, EPDM Rubber Housing
- Voltage Rating
- 600 Volts
- Insulation
- Yes
- Consist Of
- Flood Seal Housing, Fuse Clips, Two Aluminum Lugs, Hardware, Silicone Lubricant and Instruction Sheet. Fuse not Included.
IGCC4586 Electrical connector assembly
TypeBreak-Away Streetlight Kits
ApplicationRated 600V, 30 Amps Maximum, perfect for heavy-duty applications.
ConnectionMechanical
Number Of Conductors3
ColorBlack
Amperage Rating30 Amps
Environmental ConditionsWatertight
