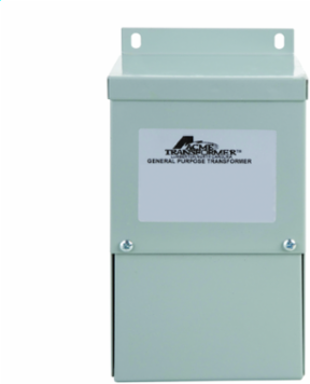

Acme Electric T181048 Buck-Boost Transformer 120 X 240V 12/24V 100VA Wall Mount
- MPN: T181048
- UPC: 047503089644
- PPN: HBL-T181048
- UNSPSC: 39121025
CAD
$273.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Buck-Boost Transformer - Single Phase, 120 X 240 - 12/24V, 100VA
Features
- Easily configured for numerous applications
- Lower cost solution
- 5-10 times increase in kVA
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.67 in x 3.89 in x 7.16 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Buck-Boost Transformer
- Frequency Rating
- 50/60 Hz
- Length
- 3.67 in
- Primary Voltage
- 120 X 240 V
- UL Insulation Class
- 180°C
- Weight
- 5 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D170
- Construction
- Encapsulated
- BOX SIZE
- 6.000x14.000x10.000 (in)
- Pallet Height
- 32.000 in
- Pallet Weight
- 1225.000 lb.
- NAICS Code
- 335311
CSA StandardC22.2 No 47
kVA0.10
Product CategoryBuck-Boost Transformer
Secondary Voltage12/24 V
Height7.16 in
MountingWall
Width3.89 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504314065
Stock IndicatorS - Shelf Stock
Winding MaterialCU
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503089644
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
