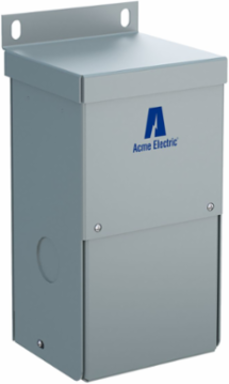

Acme Electric T181061 Buck-Boost Transformer 240X480V 24/48V 50VA Wall Mount 4 lb.
- MPN: T181061
- UPC: 047503087503
- PPN: HBL-T181061
- UNSPSC: 39121025
CAD
$357.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Buck-Boost Transformer - Single Phase, 240 X 480 - 24/48V, 50VA
Features
- Easily configured for numerous applications
- Lower cost solution
- 5-10 times increase in kVA
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 4.51 in x 4.75 in x 9.68 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Buck-Boost Transformer
- Frequency Rating
- 50/60 Hz
- Length
- 4.51 in
- Primary Voltage
- 240 X 480 V
- UL Insulation Class
- 180°C
- Weight
- 4 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D170
- Construction
- Encapsulated
- BOX SIZE
- 5.000x11.500x9.500 (in)
- Pallet Height
- 31.000 in
- Pallet Weight
- 996.250 lb.
- NAICS Code
- 335311
CSA StandardC22.2 No 47
kVA0.05
Product CategoryBuck-Boost Transformer
Secondary Voltage24/48 V
Height9.68 in
MountingWall
Width4.75 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504314065
Stock IndicatorS - Shelf Stock
Winding MaterialCU
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503087503
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
