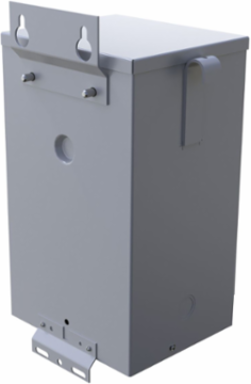

Acme Electric T137924 Buck-Boost Transformer 5kVA 240/480V 24/48V Wall Mount
- MPN: T137924
- UPC: 047503182307
- PPN: HBL-T137924
- UNSPSC: 39121025
CAD
$2910.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Buck-Boost Transformer - Single Phase, 240 X 480 - 24/48V, 5kVA
Features
- Easily configured for numerous applications
- Lower cost solution
- 5-10 times increase in kVA
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 4.2 in x 4.37 in x 9.06 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Buck-Boost Transformer
- Frequency Rating
- 60 Hz
- Length
- 4.2 in
- Primary Voltage
- 240 X 480 V
- UL Insulation Class
- 180°C
- Weight
- 75 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D170
- Construction
- Encapsulated
- BOX SIZE
- 5.500x11.750x9.750 (in)
- Pallet Height
- 32.000 in
- Pallet Weight
- 300.000 lb.
CSA StandardC22.2 No 47
kVA5.0
Product CategoryBuck-Boost Transformer
Secondary Voltage24/48 V
Height9.06 in
MountingWall
Width4.37 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Winding MaterialCU
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503182307
Pallet Length48.000 in
Pallet Width39.500 in
Certifications
- Buy American Compliant
- Contact Manufacturer
