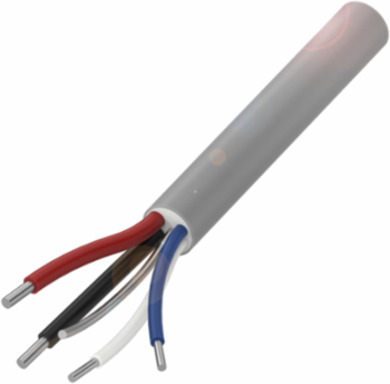

Balluff BCC 0000-0000-00-030-VS85N6-10X Bulk Cables 22 AWG, 5 Conductors, PVC Shielded, 100.00 m
- MPN: BCC 0000-0000-00-030-VS85N6-10X
- PPN: BAL-BCC0AEP
CAD
$1146.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our bulk cables are extremely robust and industrial grade. We sell various materials with different cross-sections. The line length of all cables is freely adaptable.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 300 VDC / 300 VAC |
|---|---|
| Conductor Cross-Section | 22 AWG |
| Conductor Resistance | 64 16.5 Ohm/1000 ft |
| Line Attenuation at 1 MHz | Max. 0.70 dB/100 ft |
| Line Attenuation at 500 kHz | Max. 0.50 dB/100 ft |
| Cable Length | 100 m |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Gray |
| Interface | DeviceNet |
| Number of Conductors | 5 |
|---|---|
| Conductor Construction | 2 pairs + shield |
| Operating Capacitance | 12 pF/ft |
| Line Attenuation at 125 kHz | Max. 0.29 dB/100 ft |
| Surge Impedance | 120 Ohm b112 Ohm |
| Cable Diameter | 7.24 mm b10.13 mm |
| Cable Shield | Aluminum foil, Copper braid |
| Cable Temperature Range | -20 to 75 b0C |
| Compliance | UL Listed, AWM 80b0C 300V, CSA AWM I/II A/B 80b0C 300V FT4, RoHS |
