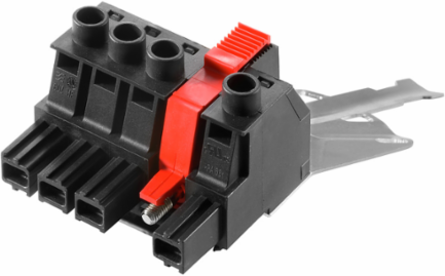

Weidmuller 2627540000 BUZ 10.16IT/04/180MSF2SH180 AG BK BX
- MPN: 2627540000
- PPN: WDM-2627540000
CAD
$32.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, female plug, 10.16 mm, Number of poles: 4, 180°, Clamping yoke connection, Clamping range, max. : 16 mm²
Specifications
Rated Data Acc. To Ul 1059
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group C / UL 1059)
- 60 A
- Wire cross-section, AWG, min.
- AWG 22
Rated voltage (Use group C / UL 1059)600 V
Rated current (Use group B / UL 1059)60 A
Rated current (Use group D / UL 1059)5 A
Wire cross-section, AWG, max.AWG 4
Dimensions And Weights
- Net weight
- 100.254 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

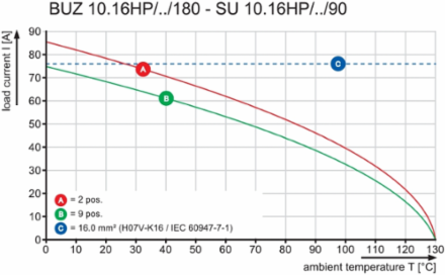

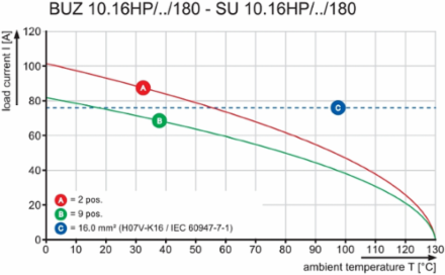

- Rated current, max. number of poles (Tu=20°C)
- 67.9 A
- Rated current, max. number of poles (Tu=40°C)
- 61.3 A
- Rated voltage for surge voltage class / pollution degree III/2
- 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 6 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 8 kV
- Clearance, min.
- 15.1 mm
Rated current, min. number of poles (Tu=20°C)78.3 A
Rated current, min. number of poles (Tu=40°C)70.6 A
Rated voltage for surge voltage class / pollution degree II/21,000 V
Rated voltage for surge voltage class / pollution degree III/31,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/28 kV
Short-time withstand current resistance3 x 1s mit 1000 A
Creepage distance, min.15.1 mm
Material Data
- Insulating material
- PA GF
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 600
- UL 94 flammability rating
- V-0
- Contact surface
- silver-plated
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 130 °C
- Temperature range, installation, max.
- 130 °C
Colourblack
Insulating material groupI
Insulation strength≥ 108 Ω
Contact materialCopper alloy
Layer structure of plug contact3- µm Ag
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Product family
- OMNIMATE Power - series BU/SU 10.16IT
- Wire connection method
- Clamping yoke connection
- Pitch in inches (P)
- 0.4 inch
- Number of poles
- 4
- L1 in inches
- 1.6 inch
- Rated cross-section
- 16 mm²
- Touch-safe protection acc. to DIN VDE 0470
- IP 20
- Can be coded
- Yes
- Tightening torque for screw flange, min.
- 0.3 Nm
- Tightening torque, min.
- 1.2 Nm
- Clamping screw
- M 4
- Plugging cycles
- ≤ 50
- Pulling force/pole, max.
- 14.5 N
Type of connectionField connection
Pitch in mm (P)10.16 mm
Conductor outlet direction180°
L1 in mm40.64 mm
Pin series quantity1
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch
Volume resistance4.50 mΩ
Stripping length12 mm
Tightening torque for screw flange, max.0.4 Nm
Tightening torque, max.1.5 Nm
Screwdriver blade standardDIN 5264, ISO 8764/2-PZ
Plugging force/pole, max.14.5 N
Packing
- VPE length
- 0
- VPE height
- 0
VPE width0
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3 For all applications with flange we recommend to fix the pin header with the help of the soldering flange or a self-tapping screw on the board.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.2 mm²
- Wire connection cross section AWG, min.
- AWG 22
- Solid, min. H05(07) V-U
- 0.2 mm²
- Stranded, min. H07V-R
- 6 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.25 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 5.3mm (B6)
Clamping range, max.16 mm²
Wire connection cross section AWG, max.AWG 6
Solid, max. H05(07) V-U16 mm²
Stranded, max. H07V-R16 mm²
Flexible, max. H05(07) V-K16 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.16 mm²
w. wire end ferrule, DIN 46228 pt 1, max.16 mm²
Max. clamping range16 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 300 V
- Rated voltage (Use group D / CSA)
- 600 V
- Rated current (Use group C / CSA)
- 60 A
- Wire cross-section, AWG, min.
- AWG 22
Rated voltage (Use group C / CSA)600 V
Rated current (Use group B / CSA)60 A
Rated current (Use group D / CSA)5 A
Wire cross-section, AWG, max.AWG 4
