Weidmuller 7789888150 C300-32B-320B-2S-M34-15
- MPN: 7789888150
- PPN: WDM-7789888150
CAD
$1345.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

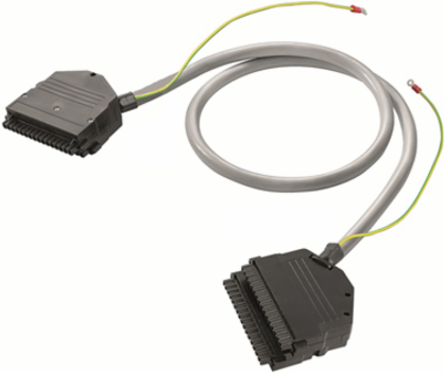

Pre-assembled cable, PAC, Cable LiYCY, 0.34 mm²
Specifications
General Data
| Connector PLC side | SP-BLZ 5.08 32P with CLAMSHELL |
|---|---|
| Number of poles, min. | 32-pole |
| Cable | Cable LiYCY |
| Material | PVC |
| Interface connector | SP-BLZ 5.08 32P with CLAMSHELL |
|---|---|
| Outer diameter | 13,9 ± 1 mm |
| Cable length | 15 m |
| Wire cross-section | 0.34 mm² |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 3,864 g |
|---|
Electrical Data
| Rated voltage (text) | ≤ 250 Vdc ≤ 250 Vac |
|---|---|
| Total current, max. | 4 A |
| High voltage test | 1 KV/1s |
| Permissible current strength per path, max. | 1 A |
|---|---|
| Resistance | ≤ 57 mΩ/m |
Classifications
| ETIM 6.0 | EC000237 |
|---|---|
| eClass 9.0 | 27-24-22-20 |
| eClass 10.0 | 27-24-22-20 |
| ETIM 7.0 | EC000237 |
|---|---|
| eClass 9.1 | 27-24-22-20 |
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | -10...50 °C |
| Operating temperature, min. | -10 °C |
|---|---|
| Storage temperature, min. | -10 °C |
| Storage temperature | -10...60 °C |
