Weidmuller 7789892100 C300-36B-324B-2S-M50-10M
- MPN: 7789892100
- PPN: WDM-7789892100
CAD
$1434.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

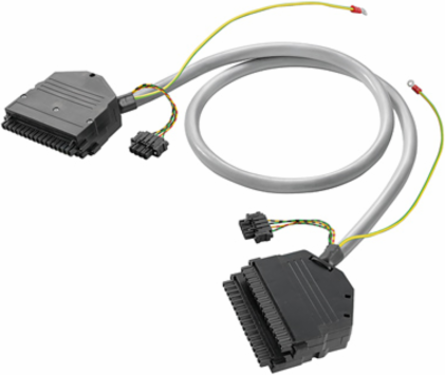

Pre-assembled cable, PAC, Cable LiYCY, 0.50 mm²
Specifications
General Data
- Connector PLC side
- SP-BLZ 5.08 32P with CLAMSHELL
- Number of poles, min.
- 36-pole
- Cable
- Cable LiYCY
- Material
- PVC
Interface connectorSP-BLZ 5.08 32P with CLAMSHELL
Outer diameter15,75 ± 1 mm
Cable length10 m
Wire cross-section0.5 mm²
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 3,360 g
Electrical Data
- Rated voltage (text)
- ≤ 250 Vdc ≤ 250 Vac
- Total current, max.
- 7 A
- High voltage test
- 1 KV/1s
Permissible current strength per path, max.1 A
Resistance≤ 39 mΩ/m
Classifications
- ETIM 6.0
- EC000237
- eClass 9.0
- 27-24-22-20
- eClass 10.0
- 27-24-22-20
ETIM 7.0EC000237
eClass 9.127-24-22-20
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -10...50 °C
Operating temperature, min.-10 °C
Storage temperature, min.-10 °C
Storage temperature-10...60 °C
