Thomas & Betts 655CK-K0240-0MA Cable Adapter and Lug
- MPN: 655CK-K0240-0MA
- UPC: 783786023288
- PPN: T-B-655CK-K0240-0MA
CAD
$264.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

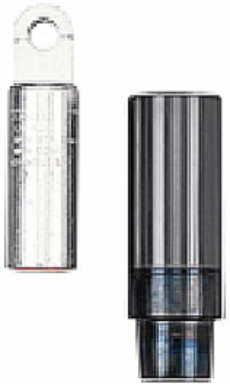

15/25kV, 600 Amp, Deadbreak, Cable Adapter and Lug. Cable Insulation Diameter 1090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0. 0MA - Metallic Tape Shield Adapter.
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 8.25x5.12x3.5 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | Metallic Tape Shield Adapter |
| Standard | ANSI/IEEE 386 |
| Material | EPDM Cable Adapter |
| Connection | Crimp/Compression |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | Cable Adapter and Lug |
| Application | Deadbreak, 600 Amp, 15/25kV |
| Size | Conductor Size AWG Compressed/Stranded 1/0 or Compacted/Solid 2/0. |
| Temperature Rating | -20 Degrees Celsius to +65 Degrees Celsius |
