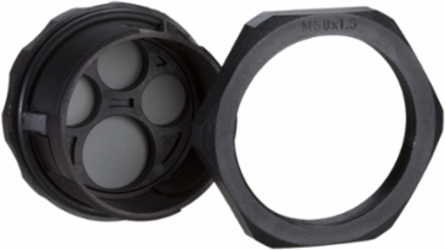

Schneider Electric NSYTSAM638SE Round Cable Passage IP65, 8 Entries, 63.5-71 mm, Polyamide
- MPN: NSYTSAM638SE
- PPN: SCH-NSYTSAM638SE
CAD
$32.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for versatility and durability, this round cable passage solution from Schneider Electric offers a reliable means of managing multiple cable entries. Constructed from high-quality polyamide, it features a robust IP65 rating, ensuring protection against dust and water ingress, making it ideal for various applications in compact enclosures and industrial boxes. With the capability to accommodate up to eight cables, each with an outer diameter ranging from 63.5 mm to 71 mm, this quick entrance plate not only streamlines cable management but also enhances the overall efficiency of your installation. Weighing just 0.68 kg and designed for easy mounting, it is a practical choice for those seeking a dependable and effective cable management accessory.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Entry Number
- 4 x 5-9.2 mm2 x 3-6.5 mm, 2 x 9.6-15.9 mm, 8
- Fixing Mode
- clipped, by screws
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Material
- polyamide
- Product Or Component Type
- quick entrance plate
- Range
- PanelSeT
- Sustainable Packaging
- No
- Height Nominal
- real: 34 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 3926909989
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Cable Outer Diameter63.5-63.5 mm, 71-71 mm
Mounting Supportbody of enclosure, cable gland plate
Local Publishable Date2026-04-13
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 circular plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 10
ReturnabilityNo
Pep CodeENVPEP1001004EN
Accessory / Separate Part Categorycable management accessory
Package Weight(Lbs)68.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1001004EN
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1001004EN
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- quick entrance plate
ETIM
- ETIM 8
- EC000240
ETIM 9EC000240
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
