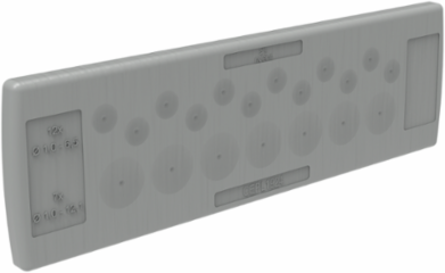

nVent Hoffman CEPL1224 Cable Entry Plate 44x142x12mm 12 Entry, Gray, IP54, Plastic
- MPN: CEPL1224
- UPC: 783510582951
- PPN: HOF-CEPL1224
- UNSPSC: 39121324
CAD
$13.68
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CEPL cable entries are ideally suited for applications in which an enclosure requires many incoming or outgoing cables, but there is limited installation space. CEPL entries can be installed quickly and easily without using tools. CEPL1224
Features
- Finish: Gray
- Pack quantity: 10
- Description: Fast, cost-effective and tool-free cable entry for incoming cables and/or pneumatic conduits inside an enclosure. The snap-in system works for wall thicknesses of 1.5 to 2.5 mm.
- Temperature resistance: -40°C to +90°C
- Flammability: UL94 V-0
- Protection: IP54, NEMA 1, 12
- Material: TPE
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Cable Entry | (12) 1.0 - 15.0 mm |
| Height (H) | 44 |
| Depth (D) | 12 |
| Material | Plastic |
| Color | Gray |
| Weight | 0.0403628117913832 |
| Cable Entry Quantity | 12 |
|---|---|
| Cutout Size | 36 x 112 |
| Width (W) | 142 |
| Product Family | Cable Manager |
| Finish | Untreated |
| Operating Temperature | -40 |
| Works With | NEMA |
