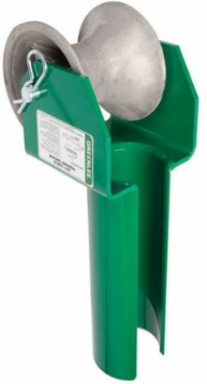

Greenlee 441-4 5 Inch Cable Feeding Sheave, Capacity 6500 LB, 6 Inch Outside Diameter, Sheave Assembly
- MPN: 441-4
- UPC: 783310303473
- PPN: GRN-441-4
- UNSPSC: 39121722
CAD
$1170.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
5 Inch Cable Feeding Sheave, Capacity 6500 LB, 6 Inch Outside Diameter, Sheave Assembly
Features
- Pulling accessory features yoke frame that slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave
- 5 IN (127 mm) wide aluminum alloy sheave with self-Lubricating bearings
- Split tube for easy removal after cable is installed
Specifications
Key Specifications
- Country of Origin
- United States
- Outside Diameter
- 6.00"
- Material
- 4" Cable Feeding Sheave
- Standard
- 4" Cable Feeding Sheave
- Capacity
- 6500.000 LB (28.900 KN) At 15DEG, 6500.000 LB (28.900 KN) At 30 DEG, 5200.000 LB (23.100KN) At 45 DEG, 4200.000 LB (18.600 KN) At 60 DEG, 3650.000 LB (16.200 KN) At 75 DEG, 3500.000 LB (15.500 KN) At 90 DEG
KeywayNone
Pitch DiameterBetween 3.00" and 6.00"
Includes25160 UPC 25160 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave
TypeSheave Assembly
