Telemecanique Sensors

Telemecanique Sensors XY2CZ9325 Telemecanique emergency stop rope pull switches XY2C, mounting kit, Ø 3.2 mm, L 25.5 m, for rope pull switch

Telemecanique emergency stop rope pull switches XY2C, mounting kit, Ø 3.2 mm, L 25.5 m, for rope pull switch
  • MPN: XY2CZ9325
  • PPN: TES-XY2CZ9325
  • UNSPSC: 39122221

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$318.67/ EA

Description

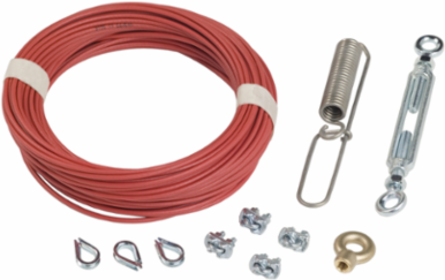

This product is part of the XY2C range, an offer of emergency stop rope pull switches. This mounting kit is dedicated to rope pull switches. The cable length is 25.5m and outer diameter is 3.2mm. It weighs 10kg. It is intended for all machine applications like woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. It is compatible with XY2CH emergency stop rope pull switch. The kit includes 1 x galvanised cable, 1 x cable support XY2CZ601, 1 x end spring XY2CZ702, 1 x turnbuckle XY2CZ404, 3 x cable end protector XY2CZ701 and 4 x cable grip XY2CZ523.

Specifications

Complementary

Cable Length
25.5 m
Product Compatibility
XY2CH
Kit Composition
1 x galvanised cable || 1 x cable support XY2CZ601 || 1 x end spring XY2CZ702 || 1 x turnbuckle XY2CZ404 || 3 x cable end protector XY2CZ701 || 4 x cable grip XY2CZ523
Cable Outer Diameter3.2 mm
Net Weight10 kg
Accessory / Separate Part Destinationemergency stop rope pull switch

Specifications

Range Of Product
Telemecanique Emergency stop rope pull switches XY2C
Accessory / Separate Part Type
mounting kit
Accessory / Separate Part Categorymounting and fixing accessories

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP111159EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Contractual warranty

Warranty
18 months
