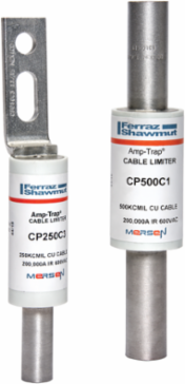

Mersen CP500C5 Cable Protector Fuse 600V 500 MCM Cu Blade To Blade Mount, 200kA Interrupting Rating
Mersen CP500C5 Cable Protector Fuse 600V 500 MCM Cu Blade To Blade Mount, 200kA Interrupting Rating
- MPN: CP500C5
- UPC: 782001931940
- PPN: FER-CP500C5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1013.67/ EA
Description
Mersen CP cable protectors are special purpose limiters which are crimped or bolted to cables to clear and isolate faults quickly, increasing the reliability of service entrance and distribution runs. They are current-limiting with a 200,000A interrupting rating, yet will carry low cable overloads which are handled by standard protective devices. Cable protectors are rated in terms of cable size and material (Al or Cu). Heat shrinkable (HS) tubing can be specified for field installation. For cables smaller than 4/0, class J fuses can be used.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- AC or DC
- AC
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Connection/Terminal Material
- Tin-Plated Copper And Tin-Plated Brass
- Body/Insulating Material
- GMG
- Weight
- 2.47 lb
Frequency (Hz)50/60 Hz
MountingBolted
Design Details500 MCM
Connection/Terminal TypeBlade To Blade
Length10.37 in
