Mersen CPH750C1 Cable Protector Fuse 600V 750 MCM CU Cable To Cable Mount, 2.5 Inch Diameter, 200kA Rating
- MPN: CPH750C1
- UPC: 782001934125
- PPN: FER-CPH750C1
CAD
$2168.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

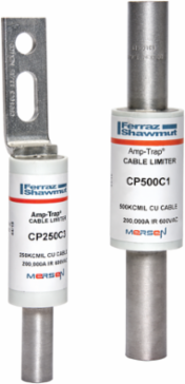

Mersen CP cable protectors are special purpose limiters which are crimped or bolted to cables to clear and isolate faults quickly, increasing the reliability of service entrance and distribution runs. They are current-limiting with a 200,000A interrupting rating, yet will carry low cable overloads which are handled by standard protective devices. Cable protectors are rated in terms of cable size and material (Al or Cu). Heat shrinkable (HS) tubing can be specified for field installation. For cables smaller than 4/0, class J fuses can be used.
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| AC or DC | AC |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | GMG |
| Weight | 3.77 lb |
| Frequency (Hz) | 50/60 Hz |
|---|---|
| Mounting | Crimp |
| Design Details | 750 MCM HD |
| Connection/Terminal Type | Cable To Cable |
| Length | 9.51 in |
