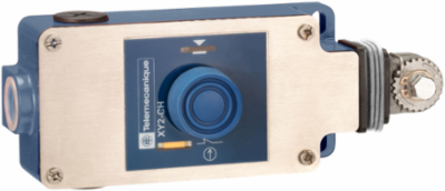

Telemecanique Sensors XY2CH14290TK Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 2NC+1 NO, booted pushbutton
- MPN: XY2CH14290TK
- PPN: TES-XY2CH14290TK
CAD
$1169.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 2NC+1 NO, booted pushbutton
Documentation & Downloads
Specifications
Key Specifications
- Housing Colour
- blue
- Overvoltage Category
- class I EN/IEC 61140 || class I NF C 20-030
- Device Short Name
- XY2CH
Range Of ProductTelemecanique Emergency stop rope pull switches XY2C
Product Or Component Typelatching emergency stop rope pull switch
Complementary
- Trigger Cable Maximum Length
- 30 m
- Reset
- by booted push-button
- Number Of Cables
- 1
- [Ui] Rated Insulation Voltage
- 400 V 3)EN/IEC 60947-1 || 300 VUL 508
- [Ie] Rated Operational Current
- 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 appendix A || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 appendix A
- Distance Between Cable Supports
- 5-5 m
- Positive Opening
- with EN/IEC 60947-5-1
- Compatibility Code
- XY2CH
- [Ithe] Conventional Enclosed Thermal Current
- 6 A
- Safety Reliability Data
- B10d = 4000000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
- Cover Material
- stainless steel
- Net Weight
- 0.91 kg
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Safety Level
- can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Connections - Terminalsscrew clamp terminal, 1 x 0.34...1 x 1 mm² || screw clamp terminal, 1 x 0.34...2 x 0.75 mm²
Contacts Type And Composition2 NC + 1 NO
Terminals Description Iso N°1(21-22)NC || (31-32)NC || (13-14)NO
Short-Circuit Protection6 A cartridge fuse gG EN/IEC 60269
Contact Operationslow-break
Mechanical Durability800000 cycles
Cable Entry Number3 tapped entry Pg 13.5 cable gland
Body Materialzamak
Trigger Cable Anchor PointRH or LH side
MarkingCE
Local Signallingwithout pilot light
Tightening Torque0.8-1.2 N.m
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Environmental Characteristic
- corrosive
- Product Certifications
- UL category NISD emergency stop devices || CCC
- Vibration Resistance
- 10 gn 10-150 Hz)EN/IEC 60068-2-6
- Ip Degree Of Protection
- IP65 IEC 60529
Ambient Air Temperature For Storage-40-70 °C
Standardswork equipment directive 2009/104/EC || EN/ISO 13850 || EN/IEC 60947-5-5 || EN/IEC 60204-1 || EN/IEC 60947-5-1 || machinery directive 2006/42/EC
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
