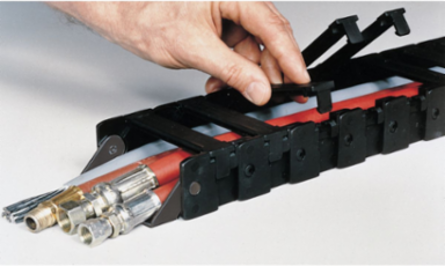

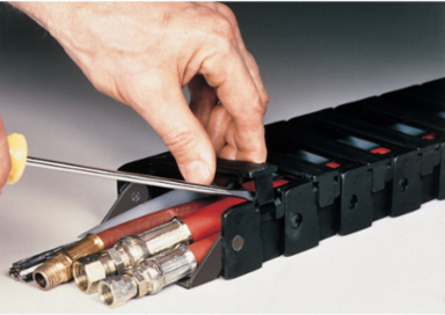

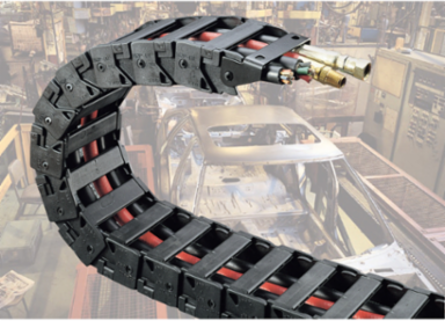

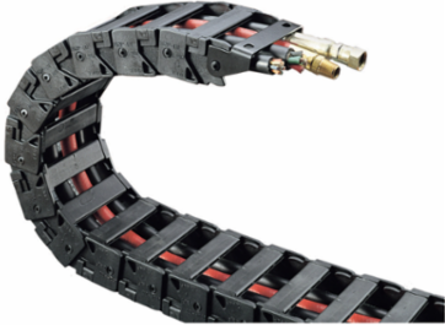

Hubbell Wiring Device-Kellems HCT16119K CableTrak Kit with Brackets, 4 Inch, Fiberglass Reinforced Nylon
- MPN: HCT16119K
- UPC: 783585343372
- PPN: HBL-HCT16119K
- UNSPSC: 39131712
CAD
$353.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
CableTrak Kits with Brackets, 4', 161 Series
Features
- Flip top link design
- Fiberglass reinforced nylon construction
- Highly wear resistant design provides corrosion resistance
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HCT16119K AutoCAD Drawing
- Performance
- Environmental - Max. Operating Speed - 600 FPM (feet per minute), 180 MPM (meters per minute).;Environmental - Max. Unsupported Travel Distance - HCT16 Series without sag 9 ft. (2.8 m) with sag 10.5 ft. (3.2 m);HCT25 Series without sag 13.5 ft. (4.1 m) with sag 17 ft. (5.2 m);Environmental - Operating Temperature - Continuous +20°F to +100°F (-7°C to 38°C);Intermittent* -40°F to +220°F (-40°C to 104°C).
- Color
- Black
- Width
- 1.5 in
- Connectivity
- Snap Together Sections
- Class Code
- A28
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A28A310
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- NAICS Code
- 3359323107
Country of OriginUnited States
ApplicationCable and Hose Carrier
Special FeaturesStandard Product
Wire Size1.35"
Display SizeStandard Sized
Description - InvoiceC-TRAK, KIT W/BTKTS, 4', 1.35" MAX, .38"
Harmonization Code3926909999
MSDS FlagNo
MaterialNylon, Fiberglass Reinforced
BOX SIZE4.500x15.800x14.500 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585343372
Case Weight3.500 lb.
Lowest Level UOMEach
