Weidmuller 2584560000 CABTITE SE 14-15 SML GY
- MPN: 2584560000
- PPN: WDM-2584560000
CAD
$5.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

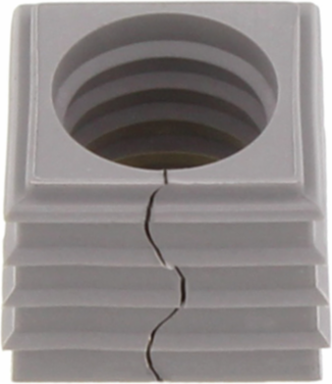

Sealing element, Cabtite (cable entry system), TPE, Light Grey, Height: 20.3 mm, Width: 20.3 mm, Depth: 17.7 mm, -40 °C…90 °C, IP54, IP65, IP66
Documentation & Downloads
Specifications
Dimensions And Weights
- Width
- 20.3 mm
- Height
- 20.3 mm
- Depth
- 17.7 mm
- Net weight
- 4.3 g
Width (inches)0.799 inch
Height (inches)0.799 inch
Depth (inches)0.697 inch
Approvals
- ROHS
- Conform
General Information
- UL 94 flammability rating
- V-0
- Outer cable diameter, min.
- 14 mm
- Halogen
- No
- Material
- TPE
Sealing element1 small sealing element
Outer cable diameter, max.15 mm
SiliconeNo
Classifications
- ETIM 6.0
- EC000879
- eClass 9.0
- 27-14-44-21
- eClass 10.0
- 27-14-44-21
ETIM 7.0EC000879
eClass 9.127-14-44-21
