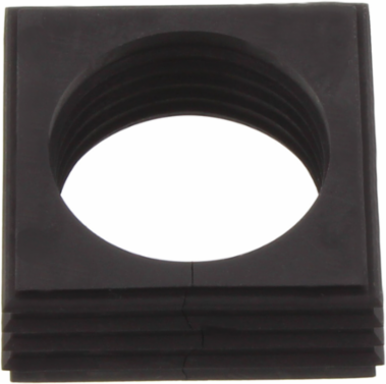

Weidmuller 2595520000 CABTITE SE 34-35 LRG BK
- MPN: 2595520000
- PPN: WDM-2595520000
CAD
$10.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 42.8 mm, Width: 42.8 mm, Depth: 17.7 mm, -40 °C…120 °C, IP54, IP65, IP66
Documentation & Downloads
Specifications
General Information
| UL 94 flammability rating | HB |
|---|---|
| Outer cable diameter, min. | 34 mm |
| Halogen | No |
| Material | TPE |
| Sealing element | 1 large sealing element |
|---|---|
| Outer cable diameter, max. | 35 mm |
| Silicone | No |
Classifications
| ETIM 6.0 | EC000879 |
|---|---|
| eClass 9.0 | 27-14-44-21 |
| eClass 10.0 | 27-14-44-21 |
| ETIM 7.0 | EC000879 |
|---|---|
| eClass 9.1 | 27-14-44-21 |
Dimensions And Weights
| Width | 42.8 mm |
|---|---|
| Height | 42.8 mm |
| Depth | 17.7 mm |
| Net weight | 0.015 g |
| Width (inches) | 1.685 inch |
|---|---|
| Height (inches) | 1.685 inch |
| Depth (inches) | 0.697 inch |
Approvals
| ROHS | Conform |
|---|
