Weidmuller 2584680000 CABTITE SE 4-5 SML BK
- MPN: 2584680000
- PPN: WDM-2584680000
CAD
$4.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

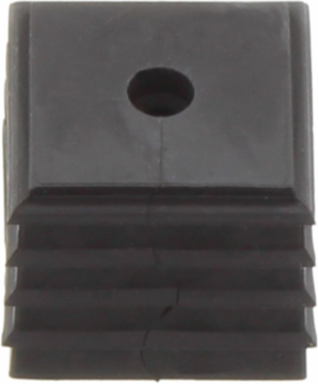

Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 20.3 mm, Width: 20.3 mm, Depth: 17.7 mm, -40 °C…120 °C, IP54, IP65, IP66
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus
- UL File Number Search
- E223801
ROHSConform
General Information
- UL 94 flammability rating
- HB
- Outer cable diameter, min.
- 4 mm
- Halogen
- No
- Material
- TPE
Sealing element1 small sealing element
Outer cable diameter, max.5 mm
SiliconeNo
Dimensions And Weights
- Width
- 20.3 mm
- Height
- 20.3 mm
- Depth
- 17.7 mm
- Net weight
- 6.2 g
Width (inches)0.799 inch
Height (inches)0.799 inch
Depth (inches)0.697 inch
Classifications
- ETIM 6.0
- EC000879
- eClass 9.0
- 27-14-44-21
- eClass 10.0
- 27-14-44-21
ETIM 7.0EC000879
eClass 9.127-14-44-21
