Thomas & Betts 655LINKCLRL0360BDRG Cam_OP Connector Kit
- MPN: 655LINKCLRL0360BDRG
- UPC: 783786013180
- PPN: T-B-655LINKCLRL0360BDRG
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15kV, Deadbreak Cam-Op Connector Kit with Insulated Cap, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Easily Installed or Removed by Hotstick Operation of the Cam Action Disconnect Lever.
- Standard
- ANSI/IEEE Standard 386.
- Connection
- Compression Lug
- Material
- EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
- Consist Of

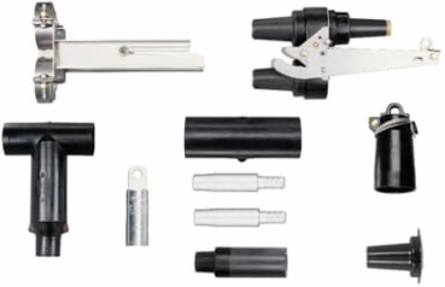

- 1) Basic Elbow, 1) CAM-OP Link, 1) Cam-OP Alignment Bracket, 2) CAM-OP Retainer Sleeves, 1) Insulated Cap, 1) Mountable Insulated Bushing, 1) Compression Lug, 1) Cable Size Adapter, 1) Bushing Extender, Installation Instructions, Crimp Chart, Silicon Lubricant
IGCC4586 Electrical connector assembly
TypeCam_OP Connector Kit
ApplicationExternal Visible Break, Testing, Grounding and Isolation.
Size20.50 inches from edge of Lever to Bushing Flange.
Conductor Range650 kcmil Stranded/Compressed or 750 kcmil Solid/Compact
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 Degrees to +65 Degrees Celsius
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
