Thomas & Betts K650LK-C CAM-OP LINK
- MPN: K650LK-C
- UPC: 783786022014
- PPN: T-B-K650LK-C
- UNSPSC: 26121630
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

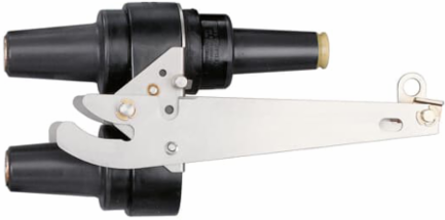

25kV 600 Series Deadbreak Cam-Op Link
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Additional Information
- Application
- Designed to use pin and socket connectors to provide a visible open on a primary cable system. After testing and grounding the Cam-Op Link is removed providing a visible open. The K650LK-C Cam-Op system can be used to retrofit to existing equipment. The K650LK-C allows hotstick operations to be completed without moving the cable. The Cam connect/disconnect lever allows for easy installation or removal by hotstick. The K650LK-C provides a 200 Amp Loadbreak interface on top for testing and grounding purposes.
- Effective Date
- 20100726
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 3.50 inch (88.9 mm) Diameter, 7.50 inch (190.5 mm) wide, 12.28 inch (312.0 mm) High (not counting Cam-Op Lever). 4.00 inch (101.6 mm) Center Plug to Center Plug.
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
MaterialEPDM Rubber
Product TypeCam-Op Link
Special Functions25kV, 600 Amp Deadbreak Rated Cam-Op Link. Provides 200 Amp tap for test and ground connections. 100 percent Peroxide-cured insulation. Cam-Op lever for hotstick operation and easy install/remove.
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
