Schneider Electric

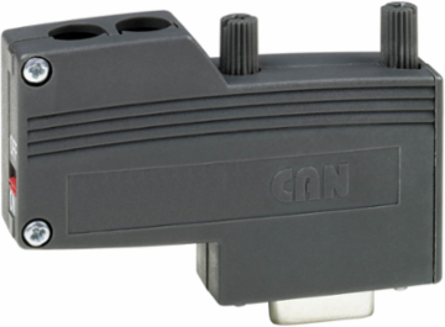

Schneider Electric VW3CANKCDF180T CANopen female SUB-D9 connector - straight

CANopen female SUB-D9 connector - straight
  • MPN: VW3CANKCDF180T
  • PPN: SCH-VW3CANKCDF180T

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$129.97/ EA

Description

This connector enables your product integration in CANopen machine bus. It is equipped with 9-way female SUB-D connector with line terminator. It has one 180° cable outlet for 2 CANopen cables. CAN-H, CAN-L, CAN-GND connection. It has an IP20 protection index.

Specifications

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc
Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold

Specifications

Range Of Product
CANopen
Accessory / Separate Part Category
connection accessories
Range Compatibility
Altivar Machine ATV340 except Sercos drives || Altivar 71Q || Altivar 71 || Altivar 61Q || Altivar 61
Ip Degree Of Protection
IP20
Accessory / Separate Part DesignationCANopen female SUB-D 9 connector
Additional Informationswitch for line termination || cable exit at 180°
Accessory / Separate Part Typeconnector
Accessory / Separate Part Destinationvariable speed drive

Contractual warranty

Warranty
18 months
