Schneider Electric TCSCAR013M120 CANopen Line Terminator for RJ45 Connector, Set of 2
- MPN: TCSCAR013M120
- PPN: SCH-TCSCAR013M120
CAD
$36.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

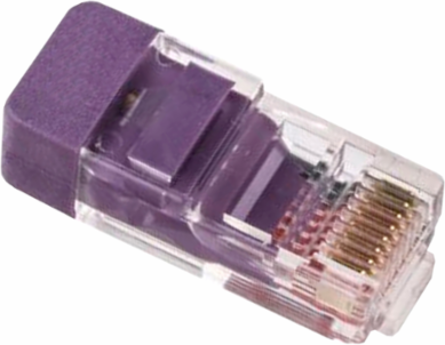

This CANopen line terminator is an accessory for variable speed drives of Altivar range. It consists in a line terminator for RJ45 connector on CANopen bus.
Features
- Engineered explicitly for modern, localized field networks, this plug-in terminator utilizes a standard RJ45 male connector layout. This design eliminates the need for manual stripping, crimping, or screw-terminating individual bus wires—technicians can simply click the pre-assembled termination plug into the final open port on the serial array to secure a robust physical and electrical connection.
- This line terminator is widely compatible with Schneider Electric's foundational motor control architectures. It integrates seamlessly with Altivar 312 and Altivar 32 legacy modules, modern Altivar Machine variable frequency drives (ATV320 and ATV340, excluding Sercos variants), Altivar Process smart drives (ATV600 and ATV900 series), and Lexium 28 digital servo drive communication ports.
- Boasting an ultra-minimalist, low-profile form factor, this miniature plug measures just 1.0 cm high, 3.0 cm wide, and 3.0 cm long with a net weight of only 9 grams. Its tiny physical envelope ensures it sits nearly flush within the drive’s existing communication recess, preventing mechanical interference with enclosure doors, wiring ducts, or adjacent power conduits.
- This hardware module functions on a pure plug-and-play mechanical level, requiring zero software parameters, structural configuration, or external power. Field technicians can rapidly verify bus stabilization during hot-commissioning without altering core PLC code, significantly accelerating network diagnostic routines and startup phase timelines.
- To align with the layout requirements of standard CANopen daisy-chain networks—which require precisely two terminal nodes at the physical ends of the trunk—this accessory is sold in standardized lots of 2 units per package. This ensures that field engineers have the exact matching pair required to safely stabilize a fresh multi-drop industrial network deployment out of a single box.
Documentation & Downloads
Specifications
Additional
- Product Or Component Type
- CANopen line terminator
- Bus Type
- CANopen
- Accessory / Separate Part Destination
- RJ45 connector
- Warranty
- 18 months
- China Rohs Regulation
- Compliant
- Accessory / Separate Part Category
- connection accessories
Accessory / Separate Part Typeline terminator
Range CompatibilityAltivar Process ATV900, Altivar Machine ATV320, Altivar 312, Altivar Process ATV600, Altivar Machine ATV340 except Sercos drives, Altivar 32, Lexium 28
Quantity Per Setset of 2
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Country of OriginChina
